1 - Control Panel & Cooktop

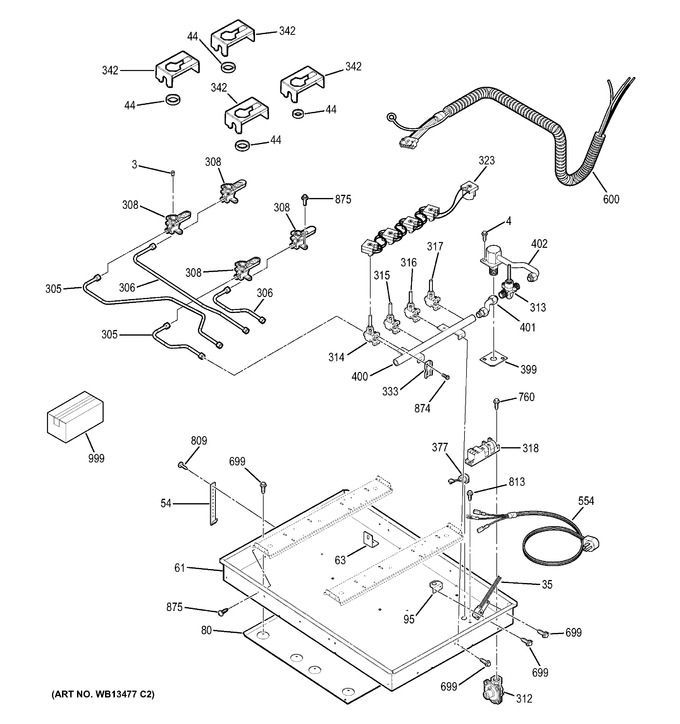

2 - Gas & Burner Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WG02F01186 | Orifice Spud Assy-lp (Replaces: WB28T10017) |
|
$ 15.88 | |||||
| 3 | WG02F01192 | Orifice Spud Rt Fr-ng (Replaces: WB28T10027) |
|
$ 15.88 | |||||
| 3 | WG02F01188 | Orifice Spud Lt Frt (Replaces: WB28T10014) |
|
$ 72.49 | |||||
| 3 | WG02F01185 | Orifice Spud Assy (Replaces: WB28T10028) |
|
$ 15.88 | |||||
| 3 | WG02F01193 | Orifice Spud Rt Frt -lp (Replaces: WB28T10033) |
|
$ 22.23 | |||||
| 3 | WG02F02903 | Orifice Spud Lp Lr (Replaces: WB28T10151) |
|
$ 12.71 | |||||
| 3 | WG02F02897 | Orifice Spud Assy-nat (Replaces: WB28T10015) |
|
$ 72.49 | |||||
| 4 | WS01A01130 | Economic Nut (Replaces: WB01K10037) |
|
Immediately | $ 3.97 | ||||
| 35 | WB08T10039 | Buzzer (120v) |
|
- | |||||
| 44 | WB02T10096 | Burner Grommet-sm |
|
- | |||||
| 44 | WB02T10095 | Burner Grommet-lge |
|
- | |||||
| 54 | WG02A00689 | Hold Down Bracket (Replaces: WB2K5328) |
|
$ 6.35 | |||||
| 61 | WB64T10045 | Bottom Burn Box |
|
- | |||||
| 63 | WB02T10099 | Support Bracket |
|
- | |||||
| 80 | WB34T10102 | Shield Burn Box Btm |
|
- | |||||
| 95 | WB02T10254 | Bracket |
|
- | |||||
| 305 | WB28T10103 | Tube Burner |
|
- | |||||
| 305 | WB28T10226 | Tube Burner Asm |
|
- | |||||
| 306 | WB28T10102 | Tube Burner |
|
- | |||||
| 306 | WB28T10150 | Tube Burner Rr |
|
- | |||||
| 308 | WB28T10208 | Burner Injet Lr |
|
- | |||||
| 308 | WG02F01185 | Burner Injet Asm (Replaces: WB28T10029) |
|
$ 15.88 | |||||
| 308 | WB28T10210 | Burner Injet Rf |
|
- | |||||
| 308 | WB28T10092 | Burner Injet Asm |
|
- | |||||
| 312 | WG02F01388 | Regulator Convert Press (Replaces: WB19T10078) |
|
$ 85.82 | |||||
| 313 | WB19T10039 | Valve Lockout |
|
- | |||||
| 314 | WB19T10035 | Valve Gas Rr |
|
- | |||||
| 315 | WG02A02820 | Valve Gas Lf (Replaces: WB19T10036) |
|
$ 140.69 | |||||
| 316 | WB19T10037 | Valve Gas Lr |
|
- | |||||
| 317 | WB19T10038 | Valve Gas Rf |
|
- | |||||
| 318 | WG02F16815 | Module Spark (4+0) (Replaces: WB13T10046) |
|
$ 57.27 | |||||
| 323 | WB18T10452 | Harness Switch Asm |
|
- | |||||
| 333 | WB6X93 | Valve Clamp |
|
- | |||||
| 342 | WB02T10102 | Maintop Support |
|
- | |||||
| 377 | WB2K5275 | Strain Relief-rt Angle |
|
- | |||||
| 399 | WB04T10043 | Seal Manifold |
|
- | |||||
| 400 | WB28T10106 | Pipe Manifold |
|
- | |||||
| 401 | WB28T10104 | Tube (7/16) |
|
- | |||||
| 402 | WB28T10105 | Tube (7/16) |
|
- | |||||
| 554 | WB08T10015 | Cord Range |
|
- | |||||
| 600 | WB18T10407 | Harness Wire Burner |
|
- | |||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 809 | WZ04X0217 | Scr 6-20 B Hxw 1/4 S |
|
- | |||||
| 813 | WS01A00445 | Screw Ground (Replaces: WB1X1261) |
|
$ 13.90 | |||||
| 874 | WB1X1428 | Screw |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 999 | 49-80660 | Pm Owners Manual |
|
- | |||||
| 999 | WB64X93 | Glass Cleaner |
|
- | |||||
| 999 | WB28T10228 | Kit, Conversion (butane) |
|
- | |||||
| 999 | 31-10714 | Instruction Install |
|
- | |||||
| 999 | 31-10833 | Pm Install Instructions |
|
- | |||||
| 999 | 31-10860 | Pm Install Instructions |
|
- | |||||
| 999 | 31-14249 | Manual Mini & Wd Asm |
|
- | |||||
| WG02L06604 | Glass Maintop 30 (bk) |
|
$ 707.87 |
