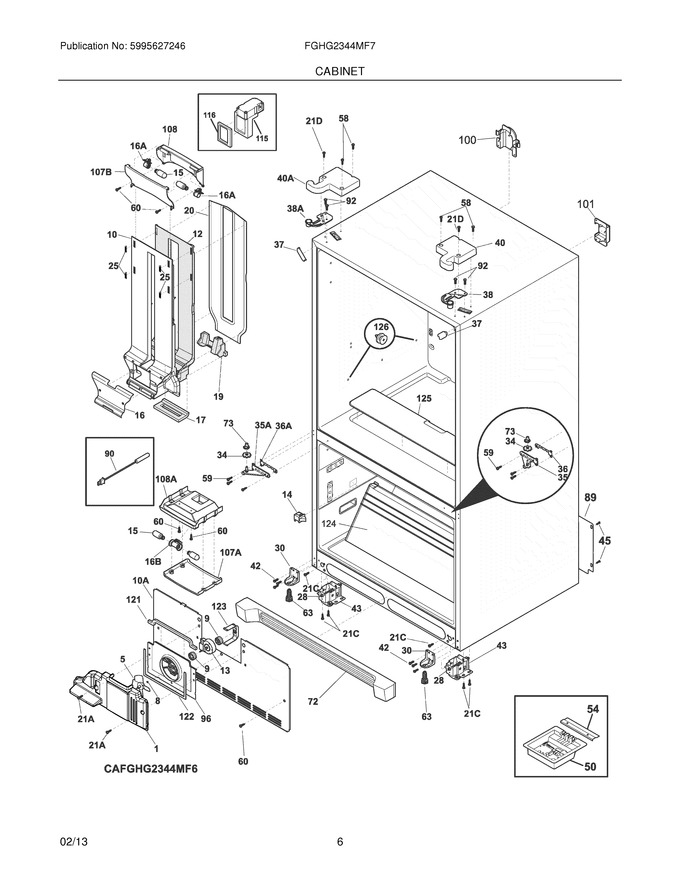

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242099401		Cover-fan				$ 29.11
8	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 20.48
9	241518301		Bushing,motor Mounting				$ 74.03
10	242072001		Cover-air Duct				$ 154.67
12	242072402		Insulation-air Duct				$ 37.80
16	242072101		Cover-damper				$ 56.26
17	5303918479		Gasket-air Duct/liner   (Replaces: 242071901)				$ 50.46
19	242072601		Support-eps Damper				$ 53.09
20	242072201		Cover-air Duct,rear				$ 107.72
25	241949502		Clip,air Vent				$ 22.75
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335502)			Immediately	$ 34.81
30	241778701		Bracket-anti Tip				$ 29.49
34	241868301		Washer,hinge ,nylon ,(2)				$ 34.65
35	241763005		Hinge-lower,zinc ,rh		Appelez-nous	-
36	241868201		Spacer,door ,lower Rh				$ 55.13
37	5304494164		Trim-cabinet Corner,gray ,(2)   (Replaces: 240337615)				$ 9.19
38	241761301		Bracket-upper Hinge,rh				$ 73.61
40	242099809		Cover-upper Hinge,gray ,rh				$ 71.59
42	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 15.75
43	5304499445		Roller Assy,front ,(2)   (Replaces: 240335006)			Immediately	$ 34.81
45	241500303		Screw,hex Washer Head ,8-18ab X 1/2			Immediately	$ 5.06
54	241532401		Channel				$ 33.86
58	218781101		Screw,pan Head ,8-18 X 0.625				$ 17.33
59	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 9.27
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 13.39
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
72	242054804		Grille/kickplate				$ 92.93
73	242075701		Cam-lower Hinge				$ 25.28
89	5304520905		Cover-access,w/label   (Replaces: 241733905)			Immediately	$ 82.25
90	240597220		Sensor,(2)   (Replaces: 240597203)			Immediately	$ 5.73
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 14.96
96	241860601		Shroud-evap Fan Mtg			Immediately	$ 146.48
100	242157601		Cover,tubing ,eps Block				$ 13.24
101	242157801		Cover,tubing ,eps Block				$ 25.70
108	241971402		Cover-wiring,top Air Duct				$ 38.17
115	5303918899		Damper,motorized   (Replaces: 241518501)			Immediately	$ 81.38
116	241518601		Seal-damper,foam				$ 10.24
121	241860103		Gasket-evap,upper			Immediately	$ 4.14
122	241860117		Gasket-evap,bottom   (Replaces: 241860102)			Immediately	$ 12.46
123	242135301		Clip,evap Fan Motor ,evap Fan Motor				$ 8.66
124	242006903		Duct-air,freezer   (Replaces: 242006902)			Immediately	$ 70.78
125	242071201		Cover,sump				$ 127.58
126	242081301		Screw-shoulder		Appelez-nous	-
10A	241860402		Cover-evap Coil,lower			Immediately	$ 145.46
21A	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 17.69
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
21D	241548003		Screw,10-32 X 3/8				$ 3.37
35A	241763006		Hinge-lower,zinc ,lh		Appelez-nous	-
36A	241868202		Spacer,door ,lower Lh				$ 26.12
38A	241761302		Bracket-upper Hinge,lh				$ 71.66
40A	242099810		Cover-upper Hinge,gray ,lh				$ 66.02
F107	241971601		Shield-light,frzr				$ 39.61
F107	241971202		Shield-light,upper				$ 40.45
F108	241679901		Screw,shield Mtg.				$ 15.75
F108	242118101		Sheild,wiring Cover		Appelez-nous	-
F108	241971801		Cover-wiring,freezer Light				$ 87.32
F10A	241860104		Gasket-coil Cover			Immediately	$ 33.08
F10A	241860105		Gasket-coil Cover			Immediately	$ 19.86
F13	809069220		Motor,evaporator Fan   (Replaces: 241509402)			Immediately	$ 171.27
F14	240505801		Switch-light/lamp				$ 74.03
F15	5304517886		Light Bulb   (Replaces: 241552807)			Immediately	$ 81.18
F16A	241969202		Harness-wiring,top Light				$ 103.16
F16A	240590403		Socket-light,top & Mid   (Replaces: 240590402)				$ 29.49
F16B	241622802		Socket-light,frz Light				$ 73.25
F16B	241510802		Harness-wiring,frz Light				$ 46.46
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 54.48
F50	241996355		Board-main Power				$ 776.91
FNI	242104901		Harness-wiring				$ 141.56
FNI	242061602		Harness-wiring,air Duct		Appelez-nous	-
NI	241953904		Screw,no.8-18				$ 11.81
NI	242072501		Cover-eps,damper				$ 21.91
NI	241860112		Gasket-evap,upper				$ 7.88
NI	241860111		Gasket-evap,bottom				$ 13.39
NI	240494001		Plug,button ,cab Liner Holes   (Replaces: 240479601)			Immediately	$ 20.22
NI	241969001		Cap,screw				$ 18.54
NI	242118001		Shield,wiring Cover ,freezer		Appelez-nous	-
NI	242004802		Foam-strip				$ 6.30

    View Diagram in Separate Window       Print Part List
