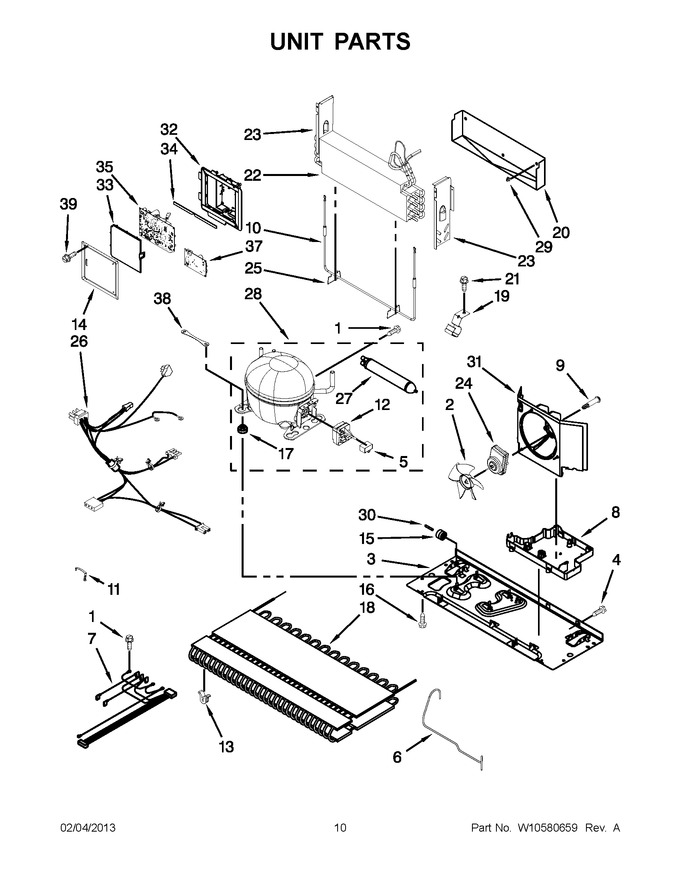

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 80.15 | ||||
| 3 | W11727651 | Basepan (Replaces: W10480111) |
|
$ 99.50 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 5 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 89.54 | ||||
| 6 | WPW10233569 | Tube, Discharge (Replaces: W10233569) |
|
$ 117.68 | |||||
| 7 | W11700330 | Harness, Evap. Heater (Replaces: W10292241) |
|
$ 123.24 | |||||
| 8 | WPW10655368 | Pan, Drain (Replaces: W10296785) |
|
Immediately | $ 94.68 | ||||
| 9 | W10829281 | Screw, Shoulder (Replaces: W10216919) |
|
$ 11.95 | |||||
| 10 | W10825088 | Heater, Defrost (Replaces: 12729129) |
|
$ 149.54 | |||||
| 11 | W11092534 | Strap, Bale (Replaces: W10216075) |
|
$ 10.70 | |||||
| 12 | WP2320150 | Device, Start (Replaces: W10330834) |
|
Immediately | $ 96.89 | ||||
| 13 | WPW10137529 | Grommet, Condenser (Replaces: W10137529) |
|
$ 7.88 | |||||
| 14 | 12961602 | Cover, Control Box |
|
$ 104.57 | |||||
| 15 | 12477102 | Roller |
|
Immediately | $ 6.64 | ||||
| 16 | 12992101 | Screw |
|
- | |||||
| 17 | WPW10169124 | Grommet-compressor (Replaces: 10835903SP) |
|
$ 6.80 | |||||
| 18 | WPW10346415 | Condenser (Replaces: W10346415) |
|
$ 316.94 | |||||
| 19 | W10281329 | Clip, Drier |
|
$ 12.36 | |||||
| 20 | W11547653 | Tray, Drip (Replaces: W10292803) |
|
$ 51.32 | |||||
| 21 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 75.34 | |||||
| 22 | W11256565 | Evaporator (Replaces: W10317014) |
|
Immediately | $ 345.12 | ||||
| 23 | 12225702 | Dam (right Hand) |
|
$ 14.09 | |||||
| 23 | 12225602 | Dam (left Hand) |
|
$ 14.66 | |||||
| 24 | W11613295 | Motor, Fan (Replaces: W10239053) |
|
Immediately | $ 129.31 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 133.36 | |||||
| 26 | W11239562 | Harness (Replaces: W10496312) |
|
$ 133.09 | |||||
| 27 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 27.70 | ||||
| 28 | W10233960 | Compressor (Replaces: W10445422) |
|
Immediately | $ 485.41 | ||||
| 29 | 10623002 | Clip, Evaporator |
|
$ 10.90 | |||||
| 30 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.11 | ||||
| 31 | W11556315 | Shroud (Replaces: W10189184) |
|
$ 75.28 | |||||
| 32 | W10119790 | Box, Hv Control |
|
- | |||||
| 33 | W11226688 | Lid, Hv Control Box (Replaces: W10296541) |
|
$ 76.64 | |||||
| 34 | 12957801 | Gasket, Hv Control Box |
|
- | |||||
| 35 | WPW10120827 | Control, Electronic (Replaces: W10120827) |
|
Immediately | $ 339.08 | ||||
| 37 | WPW10356039 | Control, Electronic (Replaces: W10120821) |
|
Immediately | $ 339.34 | ||||
| 38 | W10236396 | Strap, Compressor |
|
Immediately | $ 18.73 | ||||
| 39 | W11686675 | Screw (Replaces: 12990702) |
|
$ 12.84 | |||||
| NI | WP978025 | Valve, Access (Œ``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 16.79 | |||||
| NI | 978028 | Valve, Access (œ``) |
|
- | |||||
| NI | 978029 | Valve, Access (œ``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (Ÿ``) |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 86.33 | ||||
| NI | N/P | Refrigerant Charge (5.25 Ozs. (r-134a)) |
|
- |
