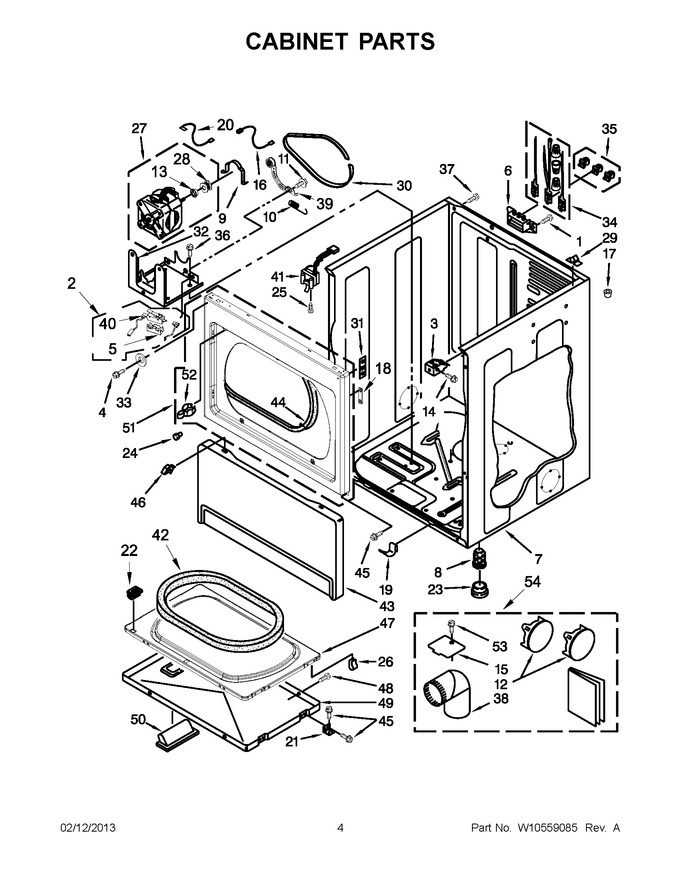

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
2	W11247665		Switch, Assembly   (Replaces: W10155571)				$ 27.72
3	3391846		Clip, Front Panel				$ 22.21
4	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
5	WP8564010		Assembly, Switch & Actuator   (Replaces: 8564010)				$ 104.11
6	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 440.17
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	W10470674		Plug, Multivent   (Replaces: 697750)			Immediately	$ 76.65
13	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
14	681615		Screw   (Replaces: 3391915)				$ 14.57
15	WPW10354249		Cover Plate, Exhaust Plate   (Replaces: 3394331)				$ 9.41
16	W10167613		Wire, Belt Switch		Appelez-nous	-
17	356674		Cone, Wedge				$ 33.19
18	W10191265		Plug, Hinge				$ 46.49
19	WPW10291934		Clip   (Replaces: W10291934)				$ 8.14
20	8539892		Wire, Motor To Belt Switch		Appelez-nous	-
21	WPW10279703		Hinge & Pin Assembly   (Replaces: W10279703)				$ 75.83
22	279570		Door Catch Assembly   (Replaces: 3392538)			Immediately	$ 8.89
23	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 8.21
24	693152		Bumper				$ 11.51
25	WP3395530		Screw   (Replaces: 697773)				$ 8.57
26	WPW10131123		Nut, ``u``   (Replaces: W10131123)				$ 8.10
27	W11234001		Assembly, Motor 60 Hz.   (Replaces: W10396034)			Immediately	$ 433.87
28	WP8066184		Pulley, Motor   (Replaces: 3394341)			Immediately	$ 51.02
29	WP345670		Lock Top   (Replaces: 345670)			Immediately	$ 8.09
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.00
31	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 11.67
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 134.62
33	W11089212		Washer   (Replaces: 3392186)				$ 11.06
34	279318		Terminal, Brass & Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
35	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
36	WP681414		Screw, Door Switch Mounting   (Replaces: 3390663)			Immediately	$ 8.47
37	W10850756		Screw   (Replaces: 8533974)				$ 8.20
38	WPW10416072		Elbow   (Replaces: 49026)				$ 28.16
39	WPW10344192		Assembly, Idler   (Replaces: W10344192)			Immediately	$ 94.57
40	8564011		Bracket, Switch				$ 19.08
41	WPW10237959		Switch, Door   (Replaces: 3406109)			Immediately	$ 55.64
42	WP3390735		Seal, Door   (Replaces: 3390735)				$ 137.13
43	WP3406797		White   (Replaces: 697215)				$ 250.25
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw   (Replaces: 342055)				$ 8.11
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	280083		Door, Rear   (Replaces: W10323061)				$ 301.37
48	WPW10139210		Screw   (Replaces: W10139210)				$ 8.03
49	W11663440		Door, Front   (Replaces: W10322546)				$ 272.34
50	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 79.54
51	W10242810		Panel, Front (white)   (Replaces: W10192882)				$ 386.67
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
53	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
54	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
