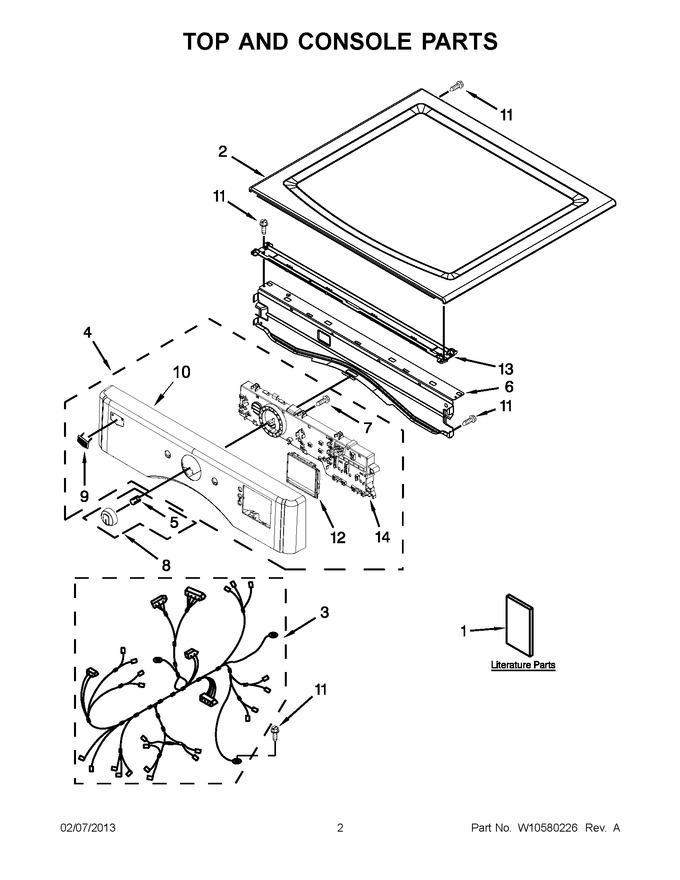

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10443041 | Installation, Instruction |
|
- | |||||
| 1 | W10385090 | Use & Care Guide |
|
- | |||||
| 1 | W10443109 | Tech Sheet |
|
- | |||||
| 2 | WPW10336080 | Top (white) (Replaces: W10336080) |
|
$ 298.79 | |||||
| 3 | W10555104 | Harness, Main |
|
- | |||||
| 4 | W10376631 | Console Assembly (white) |
|
$ 353.64 | |||||
| 5 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 170.79 | |||||
| 7 | W10006580 | Screw |
|
- | |||||
| 8 | WPW10251381 | Knob, Control (chrome) (Replaces: W10251381) |
|
$ 52.77 | |||||
| 9 | W10732500 | Badge (chrome) (Replaces: W10316087) |
|
$ 40.89 | |||||
| 10 | W10375888 | Console (white) |
|
- | |||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 12 | W10215794 | Window, Console Display |
|
$ 46.71 | |||||
| 13 | WPW10266747 | Channel, Water Dryer (Replaces: W10266747) |
|
$ 66.56 | |||||
| 14 | W10387236 | Assembly, User Interface |
|
$ 309.56 |
