SELECT A DIAGRAM

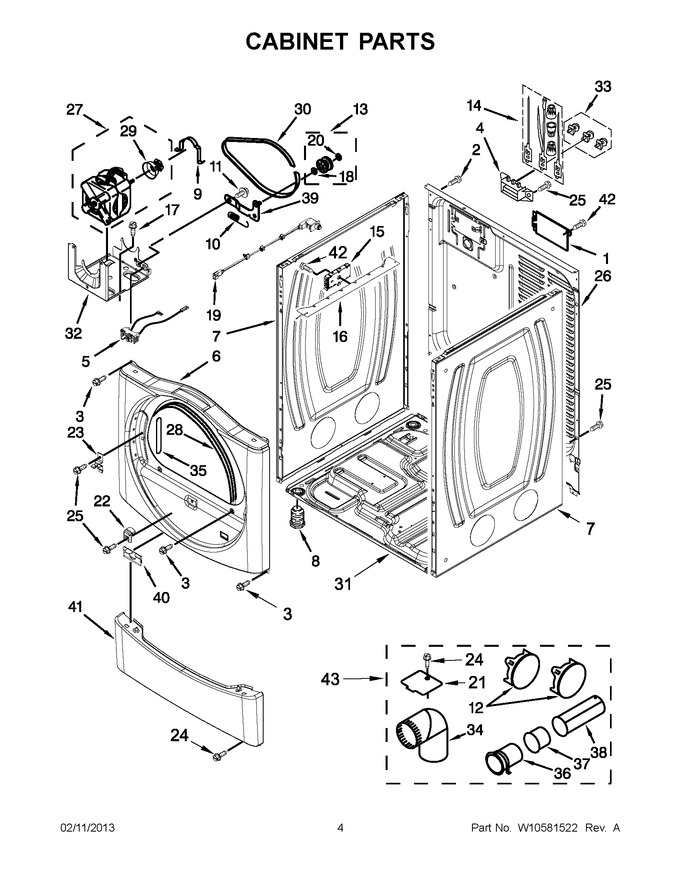

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 134.77
2	W10850756		Screw   (Replaces: 8533974)				$ 8.20
3	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
5	W10847984		Switch, Broken Belt   (Replaces: W10411936)			Immediately	$ 26.90
6	W10549669		Front Panel (cosmetallic)				$ 91.07
6	W10549666		Front Panel (silver)				$ 116.70
7	W10542716		Side Panel (cosmetallic)		Appelez-nous	-
7	W10542715		Side Panel (silver)				$ 317.99
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 26.96
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10151499)				$ 75.58
13	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
14	279318		Terminal, Brass & Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
15	WPW10450081		Control Board   (Replaces: W10450081)			Immediately	$ 349.40
16	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 179.69
17	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
18	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
19	WPW10350910		Door Switch Assembly   (Replaces: W10350910)			Immediately	$ 87.61
20	WPW10512946		Washer, Tri Ring   (Replaces: 690997)			Immediately	$ 9.68
21	WPW10354249		Plate, Cover   (Replaces: 8066115)				$ 9.41
22	8580015		Ramp, Door				$ 88.24
23	WP8565122		Strike, Door   (Replaces: 8565122)			Immediately	$ 8.65
24	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
25	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
26	8565059		Panel, Rear				$ 244.90
27	279787		Motor, Assembly 60 Hz.   (Replaces: W10317045)			Immediately	$ 246.82
28	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
29	W10837625		Pulley, Motor   (Replaces: W10402907)			Immediately	$ 12.77
30	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 105.32
31	W11215531		Base, Cabinet   (Replaces: 8565046)				$ 365.36
32	W11481730		Bracket, Motor Mounting   (Replaces: W10242878)			Immediately	$ 94.84
33	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
34	WPW10416072		Elbow   (Replaces: 49026)				$ 28.16
35	WPW10085230		Label, Hinge Hole Cover   (Replaces: W10085230)				$ 22.95
36	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 95.95
37	WPW10331278		Pipe, Exhaust   (Replaces: 8563750)				$ 82.90
38	WP8563749		Exhaust, Pipe (long)   (Replaces: 8563749)				$ 93.24
39	W10837240		Idler Assembly (includes Item 13)   (Replaces: W10547287)			Immediately	$ 35.78
40	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 22.17
41	W10251210		Pane, Toe (silver)				$ 262.43
41	W10376732		Pane, Toe (cosmetallic)				$ 85.63
42	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 8.25
43	WPW10131132		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)   (Replaces: W10331132)				$ 75.81
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55

    View Diagram in Separate Window       Print Part List
