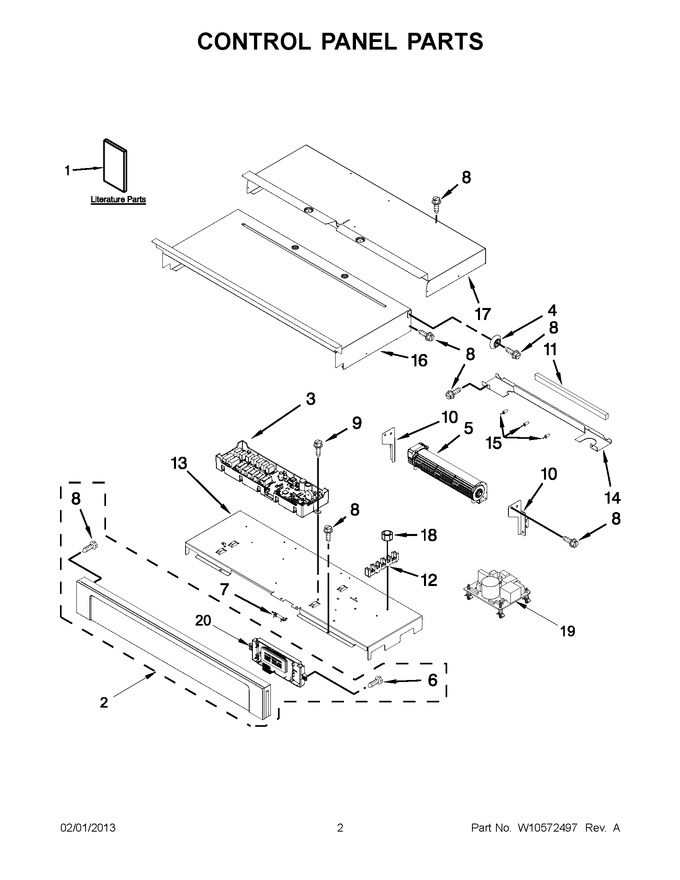

01 - Control Panel Parts
02 - Upper Oven Parts
03 - Lower Oven Parts
04 - Upper Oven Door
05 - Lower Oven Door
06 - Internal Oven Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10351242 | Instructions, Installation (english) |
|
- | |||||
| 1 | W10075750 | Instructions, Installer |
|
- | |||||
| 1 | W10425197 | Tech Sheet (english/french) |
|
- | |||||
| 1 | W10354189 | Use & Care Guide |
|
- | |||||
| 1 | W10507056 | Sheet, Tech (english/french) |
|
- | |||||
| 2 | W10540097 | Assembly, Control Panel (includes Overlay) (white) |
|
- | |||||
| 2 | W10540096 | Assembly, Control Panel (includes Overlay) (black) |
|
- | |||||
| 2 | W10540095 | Assembly, Control Panel (includes Overlay) (stainless) |
|
- | |||||
| 3 | WPW10496836 | Manager, Appliance (Replaces: W10496836) |
|
$ 467.20 | |||||
| 4 | W10363824 | Spacer, Lateral |
|
- | |||||
| 5 | WPW10260254 | Blower (upper) (Replaces: W10260254) |
|
Immediately | $ 178.03 | ||||
| 5 | W10286217 | Blower (lower) |
|
$ 208.35 | |||||
| 6 | WP12990527 | Screw (Replaces: 7101P403-60) |
|
Immediately | $ 8.76 | ||||
| 7 | WPW10545291 | Fuse, Thermal (Replaces: W10545291) |
|
Immediately | $ 35.50 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 35.17 | ||||
| 13 | W10283005 | Tray, Electronic |
|
- | |||||
| 14 | WPW10318191 | Chassis, Divider Back (upper Model Only) (Replaces: W10318191) |
|
$ 81.94 | |||||
| 15 | W10351295 | Bumper (lower Model Only) |
|
$ 22.12 | |||||
| 16 | W10318193 | Chassis, Cover Top Front 27`` |
|
$ 136.08 | |||||
| 17 | W10318195 | Chassis, Cover Top Back 27`` |
|
$ 111.04 | |||||
| 18 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| 19 | WPW10260060 | Board, Power Supply (Replaces: W10260060) |
|
Immediately | $ 317.35 | ||||
| 20 | WPW10496836 | Manager, Appliance (Replaces: W10496836) |
|
$ 467.20 | |||||
| NI | W10283078 | Bracket, Blower (right) |
|
- | |||||
| NI | W10351257 | Bracket, Blower (left) |
|
- |
