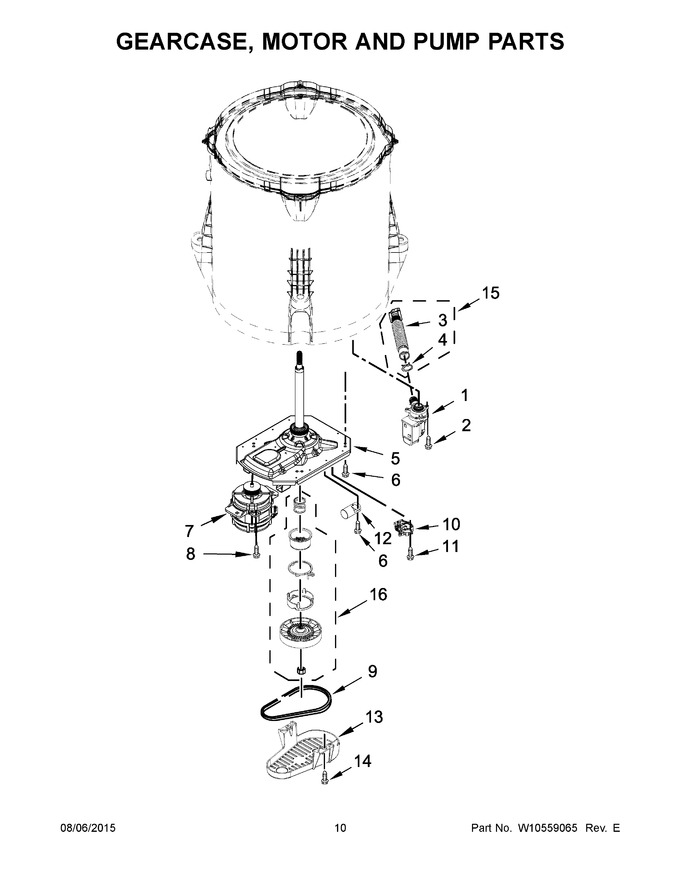

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10276397 | Pump Assembly, Drain (Replaces: W10276397) |
|
Immediately | $ 138.34 | ||||
| 2 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 8.39 | |||||
| 3 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 35.78 | ||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 5 | W11159068 | Assembly, Gearcase (Replaces: W10521293) |
|
Immediately | $ 414.29 | ||||
| 6 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 7.55 | ||||
| 7 | WPW10490819 | Motor, Drive (Replaces: W10490819) |
|
$ 375.78 | |||||
| 8 | W11685857 | Screw (Replaces: W10094780) |
|
$ 14.81 | |||||
| 9 | WPW10006384 | Belt, Drive (Replaces: W10006384) |
|
Immediately | $ 38.66 | ||||
| 10 | W11212745 | Actuator, Shift (Replaces: W10389471) |
|
Immediately | $ 82.50 | ||||
| 11 | W11596033 | Screw (Replaces: 9741052) |
|
$ 14.23 | |||||
| 12 | W11395618 | Capacitor, Motor Run (Replaces: W10625046) |
|
Immediately | $ 108.62 | ||||
| 13 | WPW10427633 | Shield, Pulley Cover (Replaces: W10427633) |
|
Immediately | $ 49.78 | ||||
| 14 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 8.43 | ||||
| 15 | W10899966 | Hose, Inner Drain Assembly Complete (Replaces: W10444123) |
|
Immediately | $ 35.78 | ||||
| 16 | W10721967 | Splutch Kit (60hz) |
|
Immediately | $ 55.68 |
