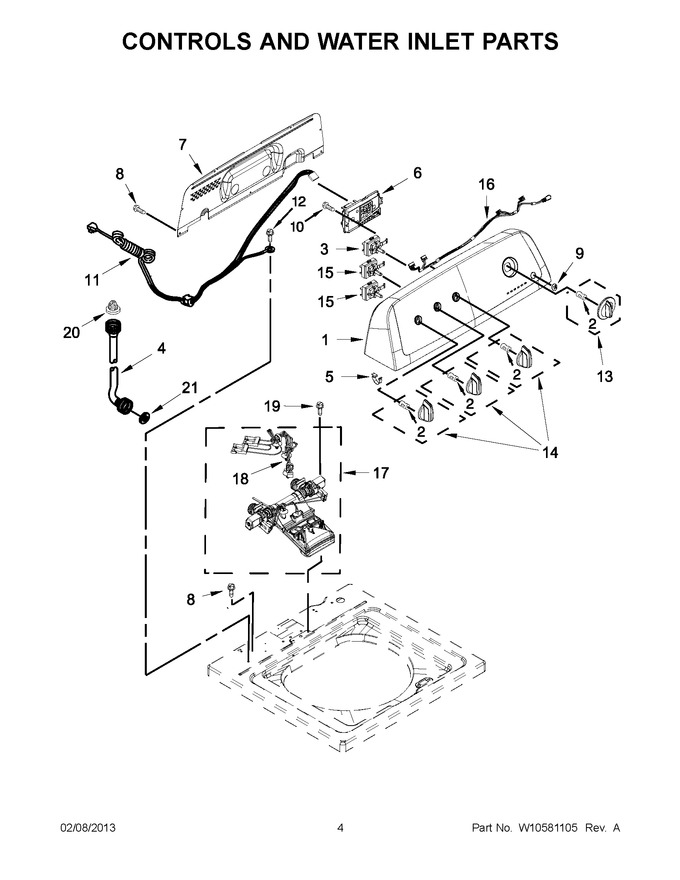

01 - Top And Cabinet Parts


02 - Controls And Water Inlet Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10552346		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	W11168256		Switch, Rotary Encoder (2 Position)   (Replaces: W10414381)			Immediately	$ 219.11
4	WP89503		Hose, Water Inlet (hot Water)   (Replaces: W10194211)			Immediately	$ 24.09
4	WP89503		Hose, Water Inlet (cold Water)   (Replaces: W10194210)			Immediately	$ 24.09
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
6	W10570356		Control Unit Assembly		Appelez-nous	-
7	W10409320		Panel, Console Rear Cover				$ 263.79
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
9	WPW10251309		Push Button, Start   (Replaces: W10251309)			Immediately	$ 76.00
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	WPW10525192		Cord, Power   (Replaces: W10525192)				$ 163.02
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	WPW10711289		Knob, Timer (white)   (Replaces: W10453946)			Immediately	$ 8.33
14	WPW10453947		Knob, Control (white)   (Replaces: W10453947)				$ 54.76
15	WPW10414397		Switch, Rotary Encoder (3 Position)   (Replaces: W10414397)				$ 136.10
16	W10291183		Harness, Upper				$ 156.04
17	WPW10683653		Inlet Assembly, Water   (Replaces: W10472844)				$ 216.49
18	W10876654		Harness, Valve   (Replaces: W10423127)				$ 194.92
19	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
20	285452A		Washer, Filter   (Replaces: 353362)			Immediately	$ 9.69
21	WP16123		Washer, Inlet Hose   (Replaces: W10242307)				$ 8.16
