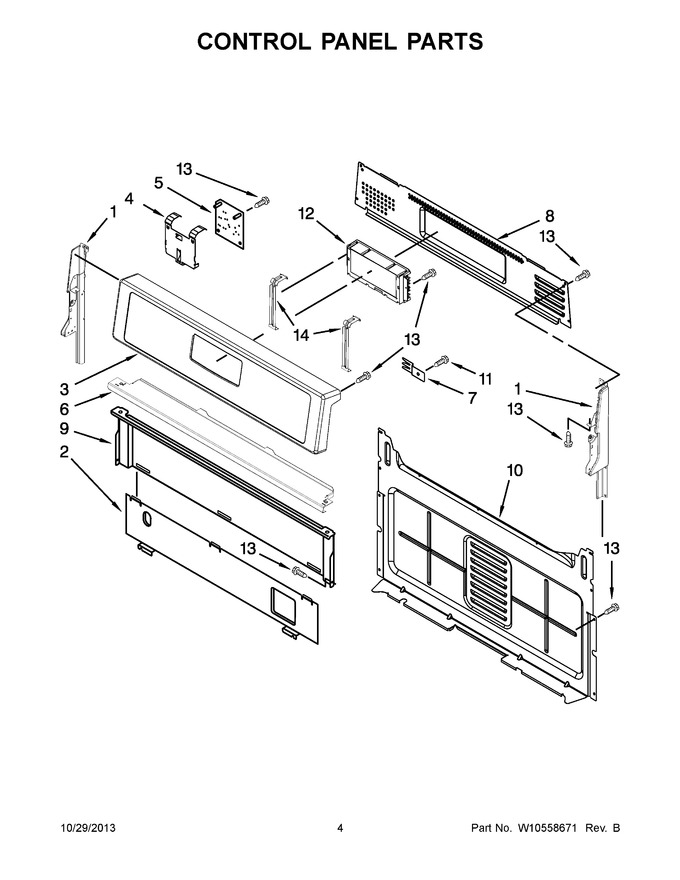

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 42.45
1	W11219665		Endcap Black (right Hand)   (Replaces: W10184438)				$ 45.17
1	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 60.83
1	W11219664		Endcap Black (left Hand)   (Replaces: W10184437)				$ 153.83
2	8053505		Heat Shield				$ 165.89
3	W10339408		Panel, Control (stainless)				$ 122.16
3	W11234434		Panel, Control (black)   (Replaces: W10370100)				$ 345.31
3	W11234436		Panel, Control (white)   (Replaces: W10370102)				$ 345.31
4	W10516577		Bracket, Mounting		Appelez-nous	-
5	WPW10331686		Module, Spark   (Replaces: W10331686)			Immediately	$ 403.60
6	W10516123		Bracket, Console Mounting (gas)		Appelez-nous	-
7	8523412		Bracket, Rear Cooktop				$ 167.90
8	W10198745		Cover, Upper				$ 128.90
9	W10192841		Shield, Heat				$ 106.69
10	W10184370		Cover, Back		Appelez-nous	-
11	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
12	WPW10424890		Control, Range Lcc190 (stainless)   (Replaces: W10349741)				$ 448.55
12	WPW10348710		Control, Range Lcc190 (white)   (Replaces: W10348710)				$ 288.55
12	WPW10348656		Control, Range Lcc190 (black)   (Replaces: W10348709)				$ 454.79
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	W11230932		Bracket, Control   (Replaces: W10324410)			Immediately	$ 84.81
