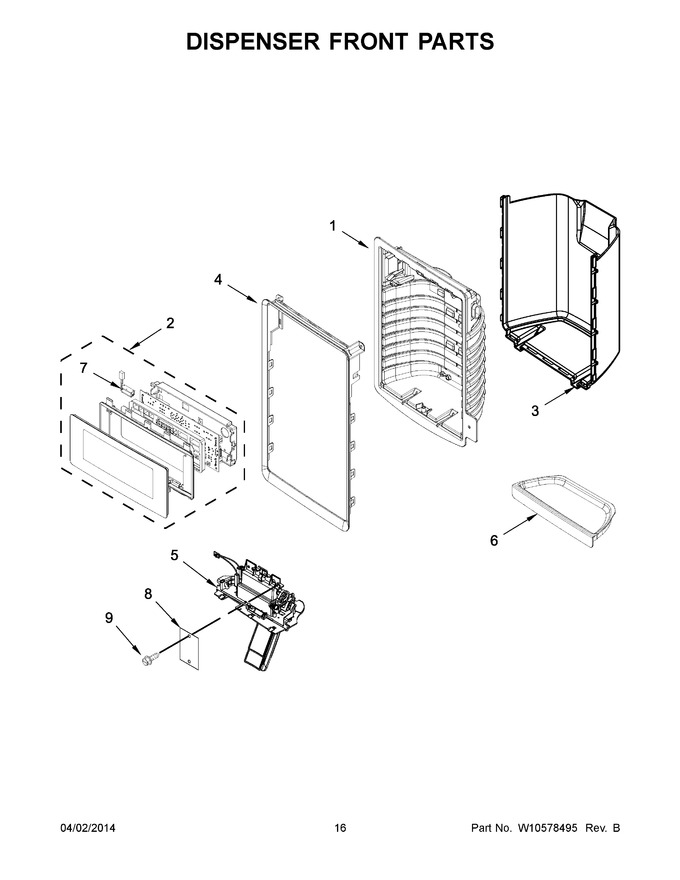

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10864261 | Assembly, User Interface (white) (Replaces: W10502236) |
|
$ 456.33 | |||||
| 2 | W10865870 | Assembly, User Interface (black) (Replaces: W10502235) |
|
$ 442.48 | |||||
| 3 | W10488308 | Wall, Dispenser False (white) |
|
- | |||||
| 3 | W10488322 | Wall, Dispenser False (black) |
|
$ 87.54 | |||||
| 3 | W10488324 | Wall, Dispenser False (grey) |
|
- | |||||
| 4 | W10462438 | Ring, Trim (white) |
|
$ 38.57 | |||||
| 4 | W10462439 | Ring, Trim (black) |
|
$ 38.46 | |||||
| 4 | W10424567 | Ring, Trim (grey) |
|
$ 96.31 | |||||
| 5 | W11175839 | Separator Assembly (white) (Replaces: W10616132) |
|
$ 155.14 | |||||
| 5 | WPW10616133 | Separator Assembly (black) (Replaces: W10616133) |
|
$ 258.46 | |||||
| 5 | WPW10616134 | Separator Assembly (grey) (Replaces: W10616134) |
|
$ 209.79 | |||||
| 6 | W10606644 | Tray, Drip (white) |
|
$ 42.38 | |||||
| 6 | W10606643 | Tray, Drip (black) |
|
$ 29.37 | |||||
| 6 | WPW10606639 | Tray, Drip (grey) (Replaces: W10606639) |
|
$ 101.40 | |||||
| 7 | W11290115 | Led Assembly (Replaces: W10470750) |
|
$ 84.45 | |||||
| 8 | W10572633 | Shield, Separator |
|
- | |||||
| 9 | WPW10272364 | Screw (Replaces: W10272364) |
|
Immediately | $ 11.36 |
