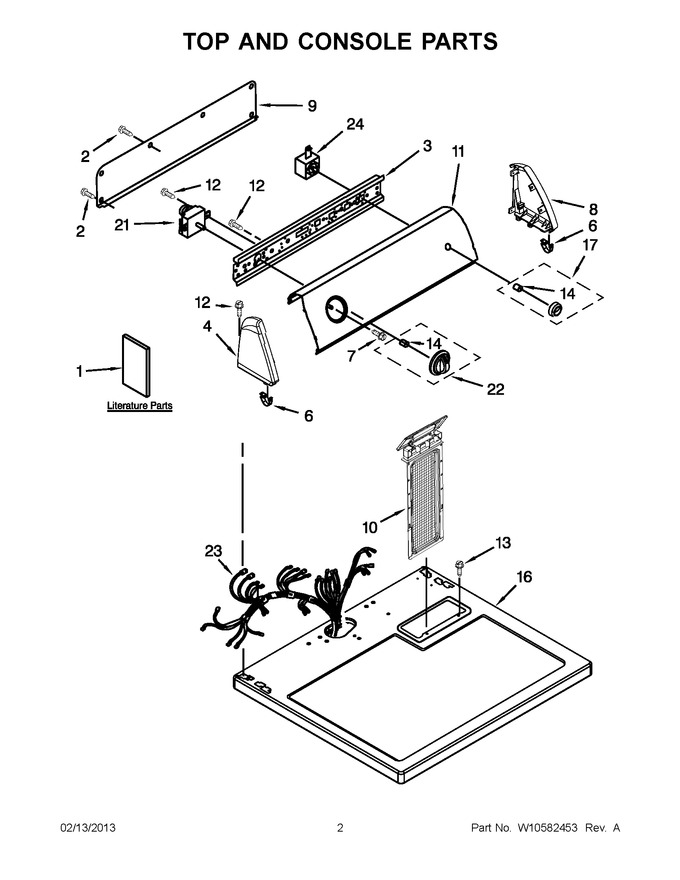

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10454274 | Installation Instructions |
|
- | |||||
| 1 | W10396178 | Wiring Diagram |
|
- | |||||
| 1 | W10454275 | Use & Care Guide |
|
- | |||||
| 2 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 3 | 8566052 | Bracket, Control |
|
- | |||||
| 4 | WP8565957 | End Cap (left) (white) (Replaces: 8566035) |
|
$ 64.76 | |||||
| 6 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 7 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 8 | WP8565954 | End Cap (right) (white) (Replaces: 8566032) |
|
$ 65.84 | |||||
| 9 | W10103406 | Panel, Rear (console) |
|
$ 135.31 | |||||
| 10 | W11778253 | Lint Screen (Replaces: 8557857) |
|
Immediately | $ 54.63 | ||||
| 11 | W10365084 | Panel, Control |
|
- | |||||
| 12 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 16 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 17 | W10034770 | Knob, Push To Start (white/metallic) |
|
- | |||||
| 21 | WP8299781 | Timer Assembly (60 Hz.) (Replaces: 8299781) |
|
Immediately | $ 380.55 | ||||
| 22 | W10034750 | Knob, Control (white/metallic) |
|
$ 28.27 | |||||
| 23 | W10386309 | Harness, Wiring |
|
- | |||||
| 24 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 |
