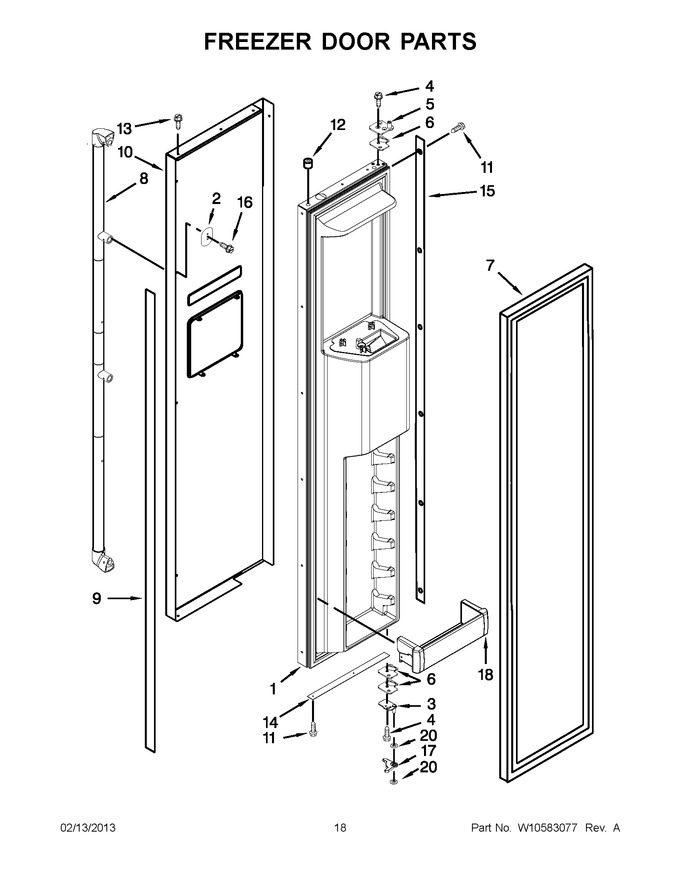

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10292432 | Door Assembly, Freezer |
|
- | |||||
| 2 | W10127710 | Plate, Handle Door |
|
Immediately | $ 25.94 | ||||
| 3 | W11752085 | Assembly, Bottom Hinge Leaf (Replaces: 2302879) |
|
$ 63.07 | |||||
| 4 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 5 | W11673500 | Assembly, Top Hinge (Replaces: W10485980) |
|
Immediately | $ 130.37 | ||||
| 6 | W11673500 | Spacer, Door Hinge (bottom) (Replaces: 2316804) |
|
Immediately | $ 130.37 | ||||
| 7 | WP2266905 | Door Gasket, Magnetic (Replaces: 2222814) |
|
$ 329.66 | |||||
| 8 | WP2316868 | Door Handle (stainless) (Replaces: 2316868) |
|
Immediately | $ 281.43 | ||||
| 9 | 2309060 | Spacer Assembly, Door Handle Side |
|
- | |||||
| 10 | W10523759 | Skin, Door |
|
- | |||||
| 11 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 12 | 2005433 | Spacer, Door Skin Top |
|
$ 23.33 | |||||
| 13 | W10759522 | Screw (Replaces: 488568) |
|
$ 8.24 | |||||
| 14 | 2257385 | Spacer, Door-skin (bottom) |
|
- | |||||
| 15 | W10142296 | Spacer, Door |
|
- | |||||
| 16 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 17 | W11700297 | Cover, Bottom Gap (Replaces: W10482554) |
|
Immediately | $ 38.28 | ||||
| 18 | W10323602 | Bin, Door |
|
$ 98.03 | |||||
| 20 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 11.76 |
