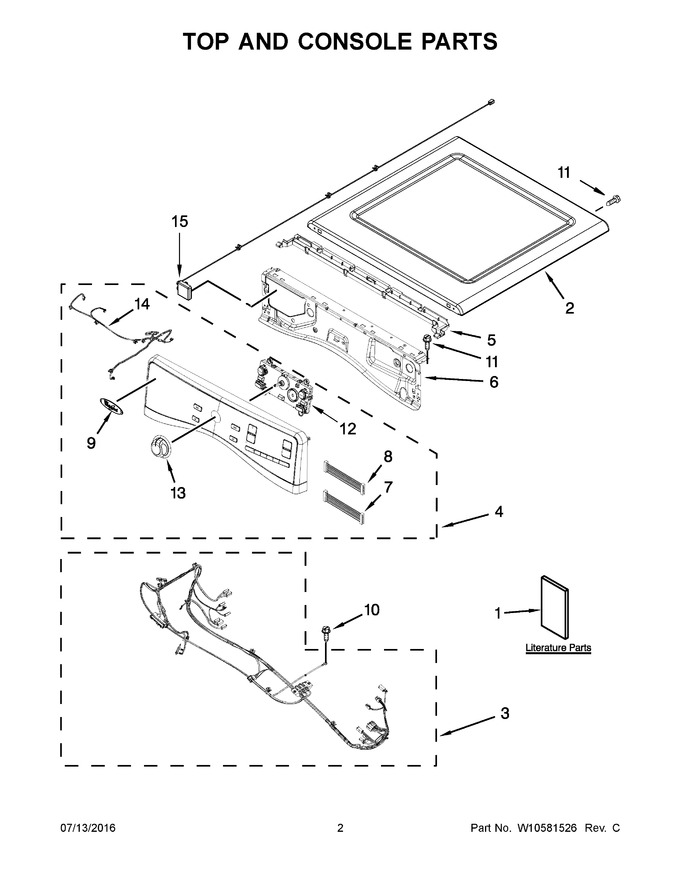

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10436347		Use And Care Guide		Appelez-nous	-
2	WPW10316282		Top (silver)   (Replaces: W10316282)				$ 346.19
3	W10396605		Harness, Main		Appelez-nous	-
4	W10594183		Panel, Console		Appelez-nous	-
5	WPW10653575		Water Channel   (Replaces: W10259210)				$ 90.94
6	W10903536		Bracket, Console		Appelez-nous	-
7	W10267938		Harness, Jumper Ui		Appelez-nous	-
8	W10267937		Harness, Jumper		Appelez-nous	-
9	W10338425		Badge, Whirlpool		Appelez-nous	-
10	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
11	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
12	W10389283		Ui, Center (includes Knob)		Appelez-nous	-
13	WPW10251394		Assembly, Control Knob (chrome)   (Replaces: W10251394)				$ 55.94
14	W10396607		Cable, User Interface		Appelez-nous	-
15	W10445531		Antenna Assembly, Front		Appelez-nous	-
1A	W10436726		Tech Sheet		Appelez-nous	-
1B	W10423118		Installation, Instruction		Appelez-nous	-
1C	W10394273		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
