SELECT A DIAGRAM

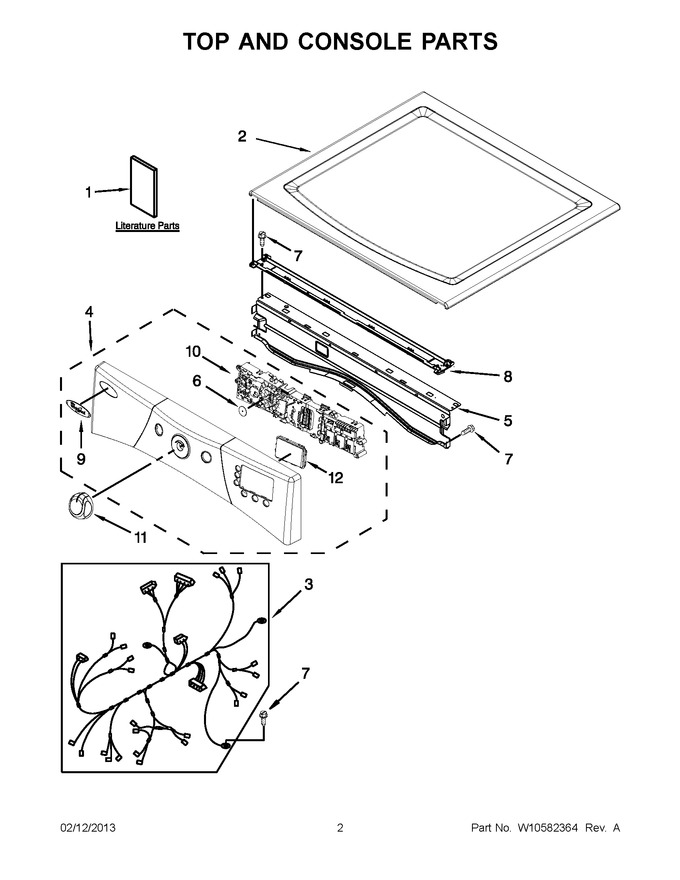

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10385092 | Use & Care Guide |
|
- | |||||
| 1 | W10443109 | Tech Sheet |
|
- | |||||
| 1 | W10443045 | Installation Instructions |
|
- | |||||
| 2 | WPW10336080 | Top (white) (Replaces: W10336080) |
|
$ 298.79 | |||||
| 3 | W10555108 | Main Wiring Harness |
|
$ 165.50 | |||||
| 4 | W10380697 | Panel, Console |
|
$ 437.12 | |||||
| 5 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 170.79 | |||||
| 6 | 8572039 | Seal, User Interface |
|
- | |||||
| 7 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 8 | WPW10266747 | Channel, Water Dryer (Replaces: W10266747) |
|
$ 66.56 | |||||
| 9 | W10338425 | Medallion |
|
- | |||||
| 10 | W10387226 | Assembly, User Interface |
|
$ 235.47 | |||||
| 11 | WPW10416463 | Knob, Control (Replaces: W10416463) |
|
$ 55.42 | |||||
| 12 | W10212742 | Window, Led |
|
$ 22.30 |
