SELECT A DIAGRAM

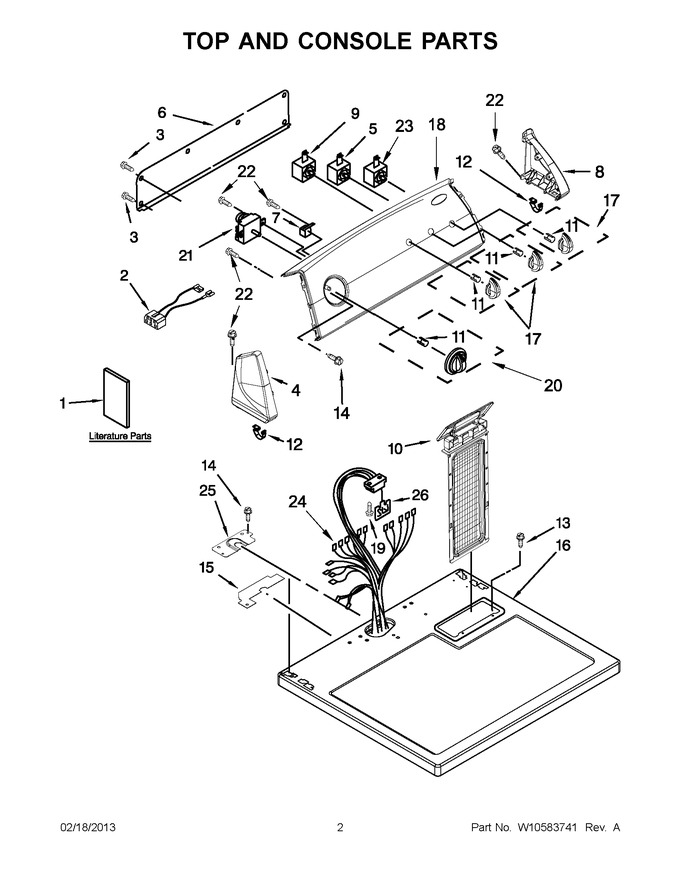

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10514172		Installation Instructions		Appelez-nous	-
1	W10096986		Guide, Use & Care		Appelez-nous	-
1	8578889		Wiring Diagram		Appelez-nous	-
2	W10113080		Wire, Jumper (buzzer)		Appelez-nous	-
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	WP8565957		End Cap (l.h.) (white)   (Replaces: 8566035)				$ 58.28
5	WP3405156		Switch, Wrinkle Guard   (Replaces: 3405156)				$ 137.51
6	W10103406		Panel, Rear (console)				$ 121.78
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
8	WP8565954		End Cap (r.h.) (white)   (Replaces: 8566032)				$ 59.26
9	WP8578354		Switch, Rotary Temperature   (Replaces: 8578354)			Immediately	$ 229.00
10	W11778253		Lint Screen White   (Replaces: 8557857)			Immediately	$ 49.17
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
14	W11693756		Screw   (Replaces: 359625)			Immediately	$ 13.28
15	W10112603		Seal-harness		Appelez-nous	-
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
17	W10034380		Knob, Control (white/metallic)				$ 25.06
18	WPW10295263		Console Assembly   (Replaces: W10295263)				$ 328.47
19	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.62
20	W10034750		Knob, Timer (white/metallic)				$ 28.27
21	WP8566184		Timer Assembly (60 Hz.)   (Replaces: 8566184)			Immediately	$ 276.24
22	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
23	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 80.89
24	W10071280		Harness, Wiring   (Replaces: 8576544)		Appelez-nous	-
25	W10112578		Bracket-harness		Appelez-nous	-
26	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 296.94
