SELECT A DIAGRAM

01 - Top And Cabinet Parts

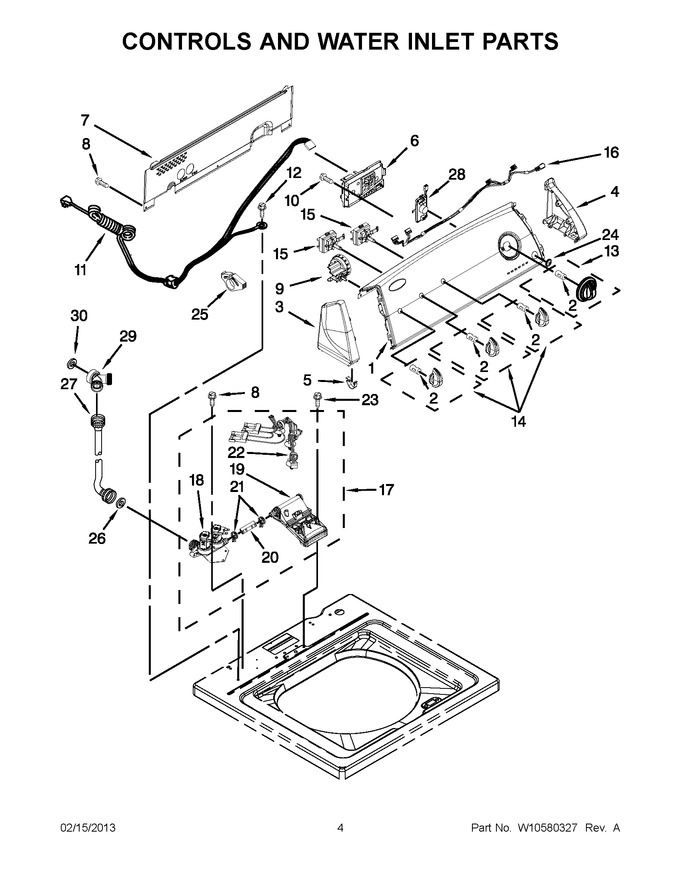

02 - Controls And Water Inlet Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10365092		Panel, Console   (Replaces: W10365092)				$ 259.97
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	WP8565957		End Cap (left) (white)   (Replaces: 8565957)				$ 64.76
4	WP8565954		End Cap (right) (white)   (Replaces: 8565954)				$ 65.84
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
6	W10723436		Control Unit Assembly, Machine & Motor   (Replaces: W10446370)				$ 436.41
7	WPW10420985		Panel, Console Rear Cover   (Replaces: W10420985)				$ 263.85
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
9	WPW10268911		Switch, Water Level   (Replaces: W10268911)			Immediately	$ 190.65
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	W10446856		Cord, Power (parts Not Shown)		Appelez-nous	-
11	WPW10476820		10a Cord Adapter (british)   (Replaces: W10476820)				$ 28.04
11	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 80.90
11	W10446855		10a Cord Lock		Appelez-nous	-
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	W10034750		Knob, Timer (white/metallic)				$ 28.27
14	W10034380		Knob, Control (white/metallic)				$ 25.06
15	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 190.47
16	W10291174		Harness, Upper				$ 253.35
17	W10465928		Inlet Assembly, Water		Appelez-nous	-
18	WPW10465728		Valve, Water Mixing   (Replaces: W10465728)				$ 217.63
19	WPW10441423		Vacuum Break   (Replaces: W10441423)				$ 90.33
20	W10238347		Hose, Vacuum Break				$ 25.86
21	WP596669		Clamp, Hose   (Replaces: W10117298)			Immediately	$ 8.82
22	W10474662		Harness, Valve		Appelez-nous	-
23	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
24	WPW10251309		Pushbutton, Start   (Replaces: W10251309)			Immediately	$ 76.00
25	WPW10663966		Clamp, Hose   (Replaces: W10348582)				$ 224.26
26	WP16123		Washer, Inlet Hose   (Replaces: W10242307)				$ 8.16
27	WPW10615809		Hose, Water Inlet (inlet Hose (blue))   (Replaces: 3949383)				$ 104.71
27	WPW10615831		Hose, Water Inlet (inlet Hose (red))   (Replaces: 3949382)				$ 103.65
28	W10522615		Filter, Line Assembly		Appelez-nous	-
29	WPW10269488		Connector, Hose -``y``   (Replaces: W10269488)				$ 89.64
30	WP3357450		Washer, Hose Adapter   (Replaces: 3357450)				$ 11.56
