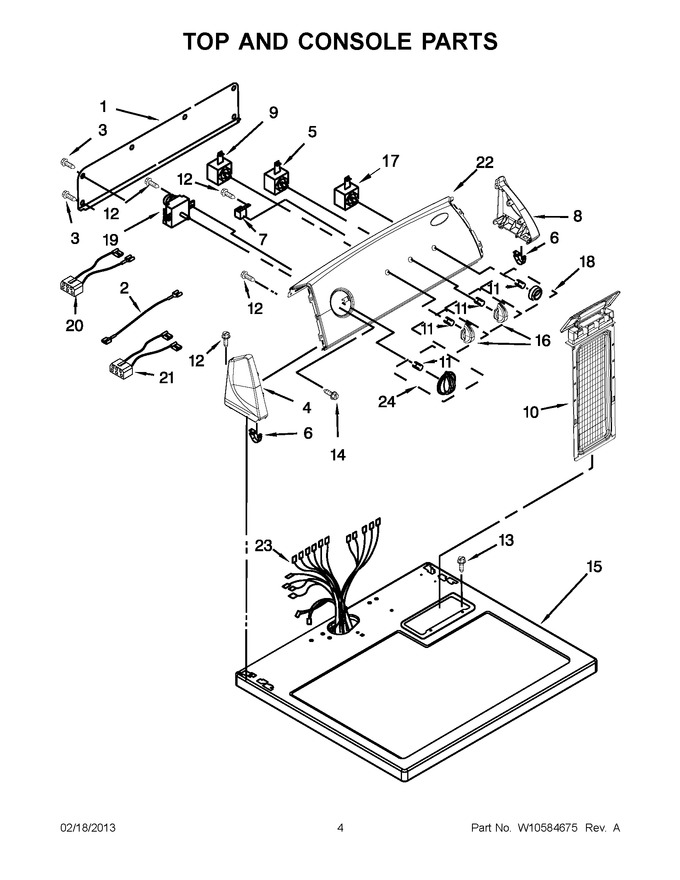

1	W10103406		Panel, Rear Console				$ 121.78
2	W10113080		Wire, Jumper (buzzer)		Appelez-nous	-
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	WP8565957		End Cap (left) (white)   (Replaces: 8566035)				$ 58.28
5	WP3405156		Switch, Wrinkle Guard   (Replaces: 3405156)				$ 137.51
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
7	3952439		Buzzer, Mini		Appelez-nous	-
8	WP8565954		End Cap (right) (white)   (Replaces: 8566032)				$ 59.26
9	WP3399639		Switch, Temperature   (Replaces: 3399639)			Immediately	$ 118.04
10	W11778253		Lint Screen (white)   (Replaces: 8557857)			Immediately	$ 49.17
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
14	W10850756		Screw   (Replaces: 8533974)				$ 7.38
15	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
16	W10034380		Knob, Control (white/metallic)				$ 25.06
17	WPW10112668		Switch, Push-to-start   (Replaces: W10112668)				$ 115.30
18	WPW10034790		Knob Assembly Push-to-start (white)   (Replaces: W10034790)				$ 52.03
19	WP3979618		Timer, 60 Hz.   (Replaces: 3979618)				$ 346.75
20	W10521801		Wire, Jumper (guard On/off)		Appelez-nous	-
21	8539893		Wire, Jumper (temperature)   (Replaces: 3396029)				$ 17.80
22	W10464659		Control Panel & Bracket Assembly (metallic)		Appelez-nous	-
23	WPW10386312		Harness, Wiring   (Replaces: W10386312)				$ 230.27
24	W10034750		Knob, Timer (white/metallic)				$ 28.27
