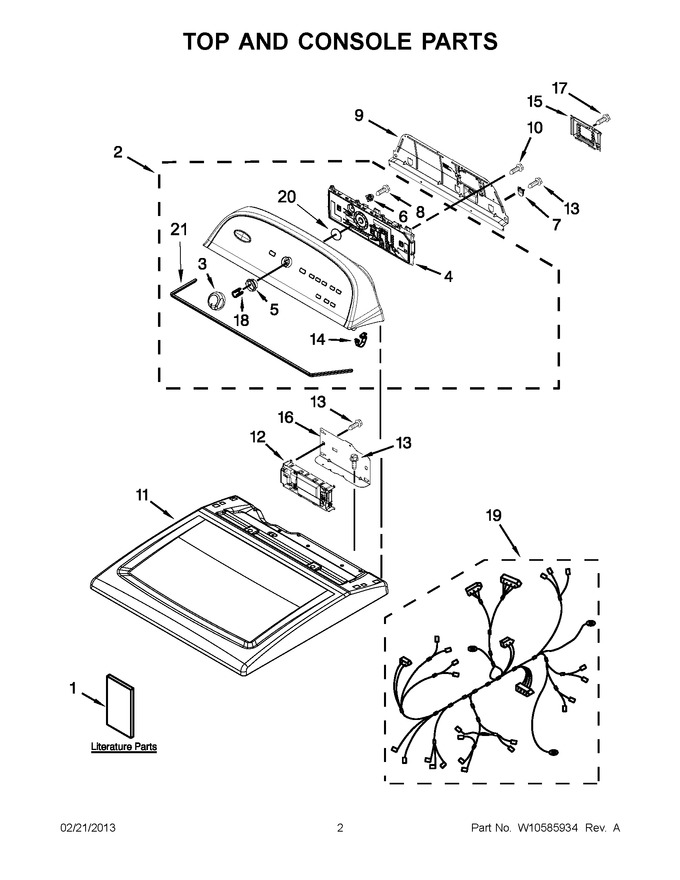

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10511617		Wiring Diagram		Appelez-nous	-
1	W10461693		Guide, Use & Care		Appelez-nous	-
1	W10563351		Installation Instructions		Appelez-nous	-
1	W10524061		Tech Sheet		Appelez-nous	-
2	W10497138		Assembly, Console (complete) (white)		Appelez-nous	-
3	WPW10251392		Assembly, Knob   (Replaces: W10251392)				$ 53.60
4	WPW10269623		Assembly, User Interface   (Replaces: W10269623)				$ 282.50
5	W10325119		Spacer, Knob		Appelez-nous	-
6	W10274524		Tensioner Fascia		Appelez-nous	-
7	W10279552		Plug-upper Rear Panel		Appelez-nous	-
8	W10853898		Screw   (Replaces: W10219342)				$ 7.36
9	W10550615		Panel, Rear Console				$ 105.15
10	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
11	W11641121		Top (white)   (Replaces: W10260246)			Immediately	$ 193.59
12	WPW10497104		Control, Electric   (Replaces: W10497104)				$ 222.15
13	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
15	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 121.29
16	W10271580		Bracket, Motor Control		Appelez-nous	-
17	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.43
18	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
19	W10511243		Harness, Main		Appelez-nous	-
20	W10323092		Seal, User Interface		Appelez-nous	-
21	W10280079		Seal, Console		Appelez-nous	-
