SELECT A DIAGRAM

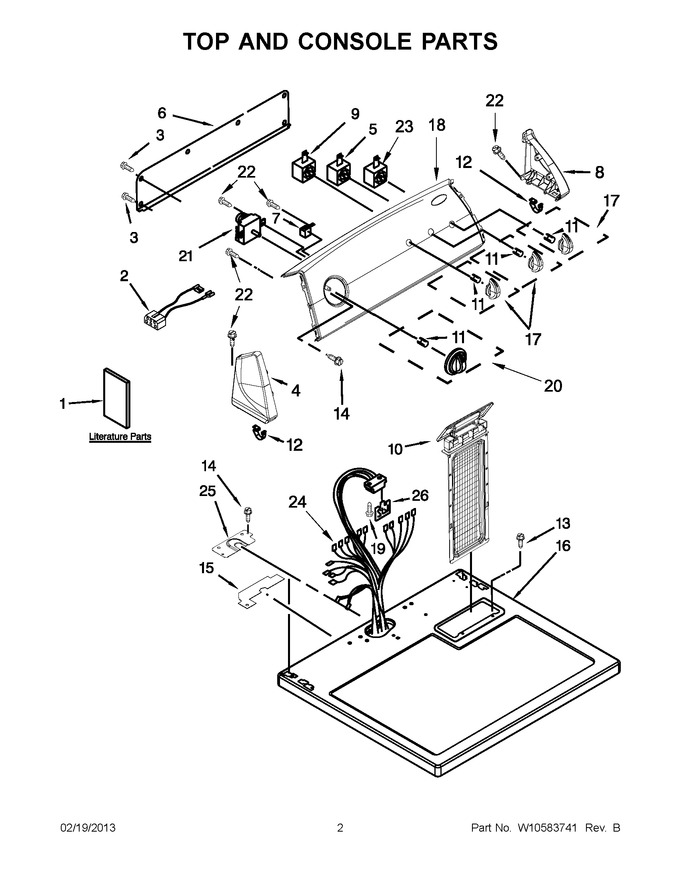

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10514172 | Installation Instructions |
|
- | |||||
| 1 | W10096986 | Guide, Use & Care |
|
- | |||||
| 1 | 8578889 | Wiring Diagram |
|
- | |||||
| 2 | W10113080 | Wire, Jumper (buzzer) |
|
- | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | WP8565957 | End Cap (l.h.) (white) (Replaces: 8566035) |
|
$ 64.76 | |||||
| 5 | WP3405156 | Switch, Wrinkle Guard (Replaces: 3405156) |
|
$ 152.79 | |||||
| 6 | W10103406 | Panel, Rear Console |
|
$ 135.31 | |||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 8 | WP8565954 | End Cap (r.h.) (white) (Replaces: 8566032) |
|
$ 65.84 | |||||
| 9 | WP8578354 | Switch, Rotary Temperature (Replaces: 8578354) |
|
Immediately | $ 254.44 | ||||
| 10 | W11778253 | Lint Screen (white) (Replaces: 8557857) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 13 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 14.76 | ||||
| 15 | W10112603 | Seal, Harness |
|
- | |||||
| 16 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 17 | W10034380 | Knob, Control (white/metallic) |
|
$ 25.06 | |||||
| 18 | WPW10295263 | Console Assembly (Replaces: W10295263) |
|
$ 364.97 | |||||
| 19 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 20 | W10034750 | Knob, Timer (white/metallic) |
|
$ 28.27 | |||||
| 21 | WP8566184 | Timer Assembly (60 Hz.) (Replaces: 8566184) |
|
Immediately | $ 292.32 | ||||
| 22 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 23 | WPW10117655 | Switch, Push To Start (Replaces: W10117655) |
|
Immediately | $ 85.60 | ||||
| 24 | W10071280 | Harness, Wiring (Replaces: 8576544) |
|
- | |||||
| 25 | W10112578 | Bracket, Harness |
|
- | |||||
| 26 | WPW10476828 | Control, Electronic (Replaces: W10476828) |
|
Immediately | $ 329.93 |
