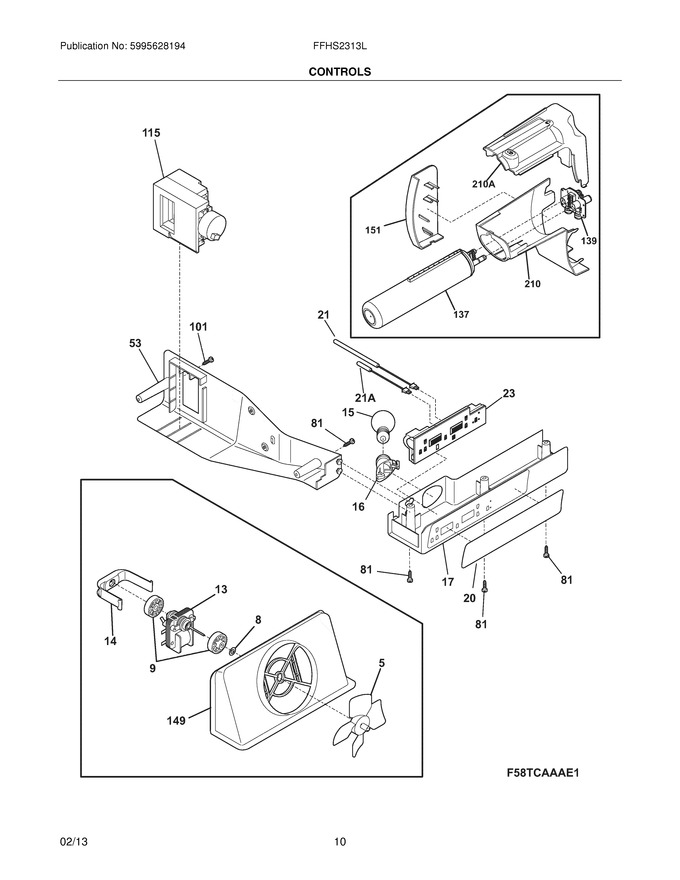

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 20.48
9	241563601		Bushing-motor Mtg			Immediately	$ 19.69
14	242135301		Clip,evap Fan Motor ,evap Fan Motor				$ 8.66
17	241633512		Box-control,front   (Replaces: 241633506)				$ 112.61
20	241604011		Label-control Box   (Replaces: 241604006)				$ 3.94
53	241608902		Box-control   (Replaces: 241608901)				$ 114.60
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
101	241637202		Screw,no.8ab X 1 3/4``				$ 5.90
139	242009604		Base-water Filter   (Replaces: 242009601)			Immediately	$ 36.82
149	241563401		Shroud-fan Orfice		Appelez-nous	-
151	242069701		Cover-water Filter				$ 69.16
210	241983814		Housing-water Filtr   (Replaces: 241983803)				$ 82.69
F115	241600906		Damper Assy,w/seal			Immediately	$ 223.16
F13	808602602		Motor-evap Fan   (Replaces: 241854601)				$ 226.25
F137	WF3CB		Filter-water,carbon   (Replaces: 242069601)			Immediately	$ 88.23
F149	241528305		Seal,shroud		Appelez-nous	-
F15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 22.75
F16	218906802		Socket-light/lamp				$ 19.69
F21	241608401		Thermistor-refr				$ 86.63
F210	241998303		Mount-water Filter   (Replaces: 241998302)				$ 16.01
F21A	241608501		Thermistor-frzr				$ 55.91
F23	241739710		Board-control,temp Control			Immediately	$ 462.60
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 54.48
FNI	241737801		Harness-wiring,control Box				$ 112.23
NI	5304535377		Tape,aluminum ,3`` Wide   (Replaces: 240570304)				$ 34.84
NI	241500303		Screw,hex Washer Head ,8-18ab X 1/2			Immediately	$ 5.06
