SELECT A DIAGRAM

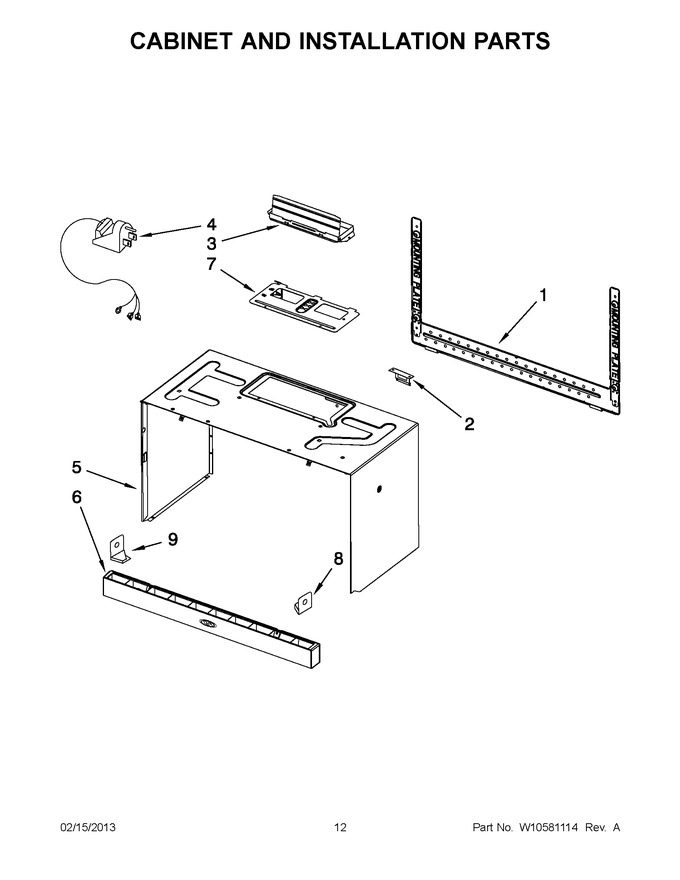

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting Microwave   (Replaces: W10440498)			Immediately	$ 22.22
2	8206385		Support, Wire Clip				$ 33.48
3	W10843943		Damper   (Replaces: 8206442)			Immediately	$ 76.13
4	W10708076		Cord, Power   (Replaces: W10269470)				$ 19.40
5	WPW10462003		Case, Outer (white)   (Replaces: W10462003)				$ 262.73
5	WPW10462001		Case, Outer (black)   (Replaces: W10462001)				$ 267.76
5	W10461999		Case, Outer (biscuit)		Appelez-nous	-
6	W10468664		Grille, Vent (white)				$ 35.56
6	W10571504		Grille, Vent (stainless)				$ 31.78
6	WPW10468666		Grille, Vent (black)   (Replaces: W10468666)				$ 42.44
6	W10471684		Grille, Vent (biscuit)		Appelez-nous	-
7	W10210832		Cover, Hood Fan Motor				$ 6.68
8	W10703282		Vent Holder, Right (white)   (Replaces: W10393276)				$ 9.90
8	W10810989		Vent Holder, Right (black)   (Replaces: W10406307)				$ 9.20
9	W11026306		Vent Holder, Left (white)   (Replaces: W10393278)			Immediately	$ 6.80
9	W10830163		Vent Holder, Left (black)   (Replaces: W10406308)				$ 12.79
NI	8205948		Miscellaneous, Installation, Hardware				$ 24.21
NI	W10190018		Miscellaneous, Template, Upper			Immediately	$ 6.80
NI	WP8169704		Miscellaneous, 1/4-20x3`` Panhead Screw   (Replaces: 8169704)			Immediately	$ 12.02
NI	W10434800		Main Harness		Appelez-nous	-
NI	W10543253		Miscellaneous, Harness, Head Lamp And Turntable   (Replaces: W10470760)				$ 22.99
NI	W10539840		Miscellaneous, Harness, Pcba Ground Wire				$ 22.57
NI	W10498567		Miscellaneous, Harness, Magnetron To High Voltage Transformer			Immediately	$ 22.10

    View Diagram in Separate Window       Print Part List
