01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)

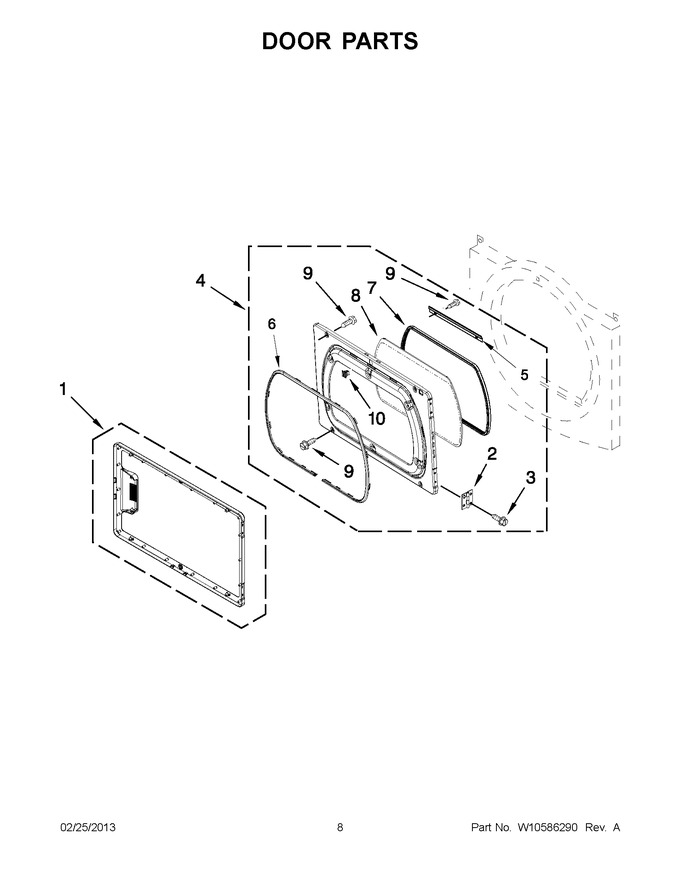

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10459655		Assembly, Outer Door				$ 211.69
2	W11175815		Assembly, Hinge & Pin   (Replaces: 3389247)				$ 85.48
3	WP488627		Screw   (Replaces: 342055)				$ 8.11
4	W11652037		Assembly, Inner Door   (Replaces: W10513690)				$ 208.90
5	W10822054		Retainer, Lower Window   (Replaces: 8519354)			Immediately	$ 18.01
6	WPW10354795		Seal-door   (Replaces: W10354795)				$ 130.12
7	W11676508		Seal, Window   (Replaces: W10284122)				$ 28.37
8	WPW10284121		Glass, Door   (Replaces: W10284121)				$ 263.61
9	WP3373329		Screw   (Replaces: 3393258)				$ 8.52
10	279570		Assembly, Door Catch   (Replaces: 690081)			Immediately	$ 8.89
