SELECT A DIAGRAM

01 - Cover


03 - Doors


05 - Cabinet


07 - Shelves


09 - System


10 - Wiring Schematic


11 - Wiring Diagram

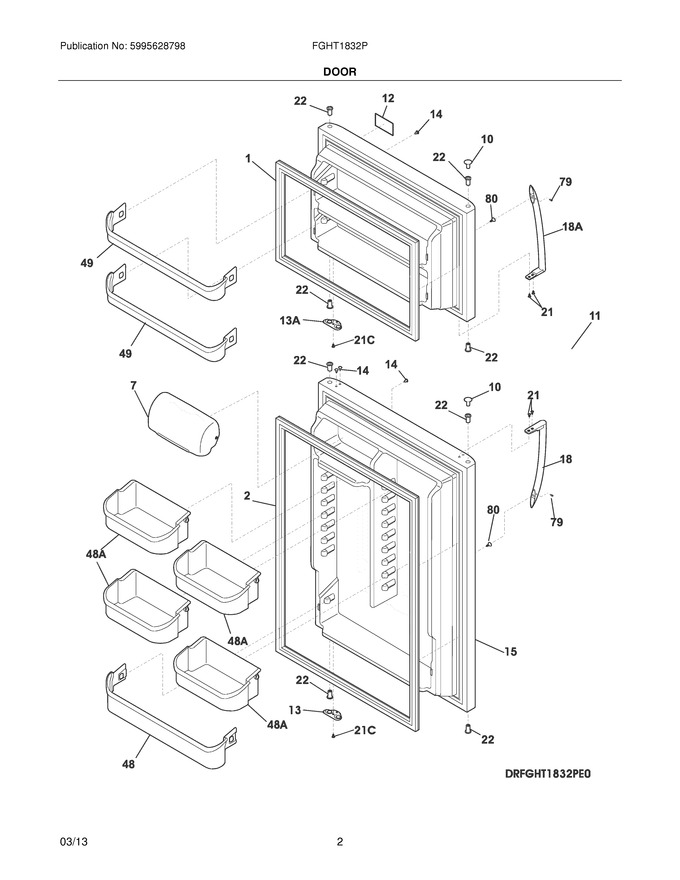

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240338313		Door,dairy ,clear			Immediately	$ 89.78
10	240381301		Plug-button,white ,hinge Brg Hole ,(2)			Immediately	$ 21.06
11	240437418		Door-frzr,white ,complete Assy   (Replaces: 240437407)				$ 571.00
12	242015201		Label-nameplate			Immediately	$ 7.67
13	240312421		Door Stop,white ,ref   (Replaces: 240312403)				$ 16.85
14	240494001		Plug-button,white			Immediately	$ 20.22
15	240438622		Door-refr,white ,complete Assy				$ 237.33
18	5303918823		Handle-door,white ,refr-rh/frzr-lh   (Replaces: 241977503)			Immediately	$ 58.14
21	240383407		Screw,truss Hd Quad ,no.10-16 X .500 ,white				$ 14.18
22	5304507146		Bearing-hinge,natural Color   (Replaces: 240527101)			Immediately	$ 8.43
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 58.19
49	240495805		Bin-door,pseudo ,frzr				$ 56.60
79	218755402		Screw-set,10-32 X .500 In			Immediately	$ 36.67
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 20.67
13A	240312414		Door Stop,white ,frzr				$ 21.26
18A	5303918823		Handle-door,white ,refr-lh/frzr-rh   (Replaces: 241977504)			Immediately	$ 58.14
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
48A	241808201		Bin-door,gallon			Immediately	$ 88.86
F1	241872503		Gasket-frzr Door,white ,magnetic			Immediately	$ 152.96
F2	242193213		Gasket-refr Door,white ,magnetic   (Replaces: 241872506)			Immediately	$ 211.36
NI	241601001		Wrench,allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
