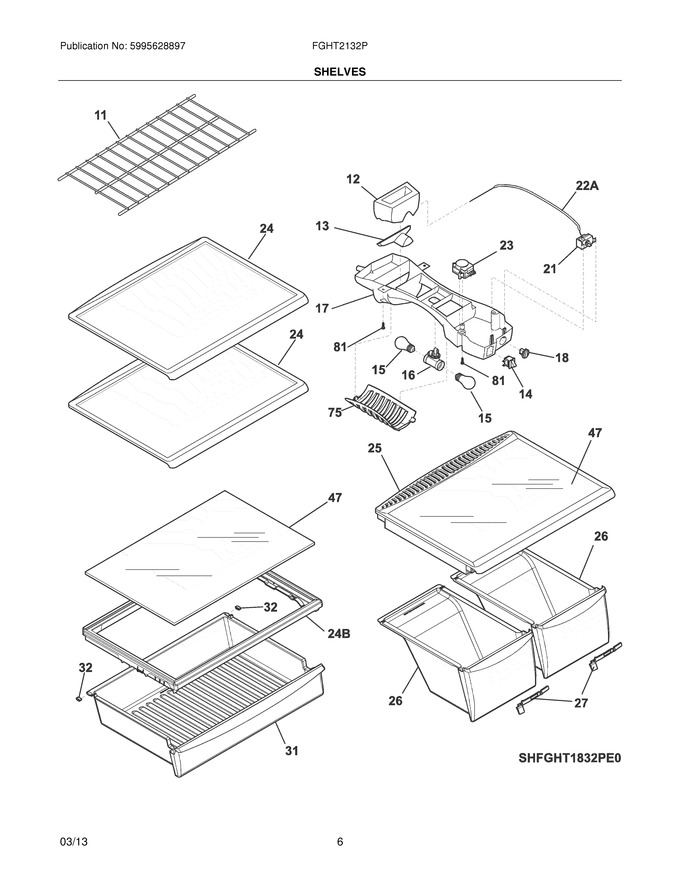

07 - Shelves


09 - System


10 - Wiring Schematic


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358006		Shelf,freezer ,full-width ,wire				$ 45.41
12	240545901		Diffuser-air,top				$ 77.96
13	240362601		Diffuser-air,bottom			Immediately	$ 46.46
16	240364201		Socket-light/lamp,dual				$ 111.67
17	240368105		Box-control,front			Immediately	$ 144.93
18	240360801		Knob-temp Control				$ 43.95
24	240358928		Shelf-``spill-safe``,sliding   (Replaces: 240358927)			Immediately	$ 193.73
25	242201803		Cover-crisper Pan				$ 123.17
26	242218506		Pan,crisper ,(2) ,w/humid Cntl   (Replaces: 242218504)				$ 133.09
27	242215901		Slide,humidity Contrl				$ 21.06
31	242322203		Meat Pan,fw Pantry ,w/slide Clips				$ 287.69
32	240349801		Clip-slide,pan				$ 22.75
47	240350609		Insert-pan Cover,glass				$ 180.33
75	240412701		Shield,light   (Replaces: 240412702)				$ 18.11
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white				$ 10.11
24B	242205404		Cover,deli Pan ,full Width   (Replaces: 242205402)				$ 128.92
F14	241554901		Switch-light/lamp				$ 78.75
F15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 22.75
F21	241537103		Control-temperature   (Replaces: 5304445058)			Immediately	$ 80.34
F23	215846604		Timer-defrost   (Replaces: 241809402)			Immediately	$ 27.31
F24B	241872203		Support-beam				$ 59.83
F24B	240362101		Clip-slide,cover				$ 52.25
FNI	240388701		Wiring Harness,control Box			Immediately	$ 88.99
NI	5304535377		Tape,aluminum ,3`` Wide   (Replaces: 240570304)				$ 34.84
NI	5304455649		Screw,pan Hd ,6-20 X 0.438				$ 18.90
NI	5303299664		Spacer-shelf				$ 26.78
NI	241705801		Spacer-shelf				$ 7.88
NI	807407003		Label,energy Guide		Appelez-nous	-
