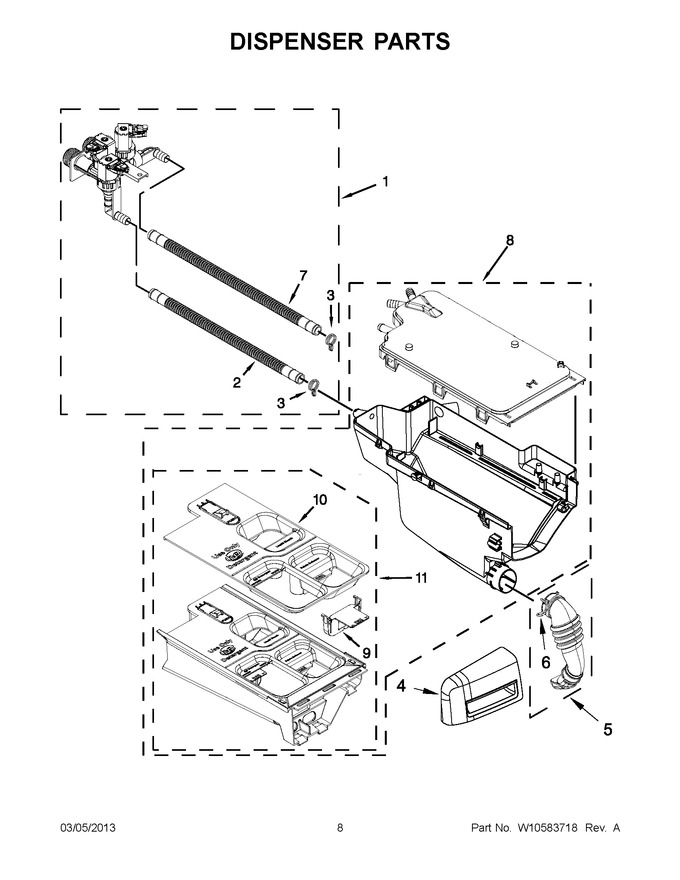

04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10599356 | Valve, Inlet Assembly (Replaces: W10509710) |
|
Immediately | $ 150.94 | ||||
| 2 | WPW10577770 | Hose, Grey (Replaces: W10435239) |
|
$ 30.09 | |||||
| 3 | WP596669 | Clamp, Hose (Replaces: 9724997) |
|
Immediately | $ 8.40 | ||||
| 4 | W10438673 | Handle, Drawer (white) |
|
$ 44.89 | |||||
| 4 | W10547981 | Handle, Drawer (granite) |
|
$ 104.53 | |||||
| 5 | WPW10239966 | Hose, Dispenser To Bellow (Replaces: W10239966) |
|
$ 82.95 | |||||
| 6 | W10239910 | Clamp, Hose |
|
Immediately | $ 59.43 | ||||
| 7 | WPW10577787 | Hose, Black (Replaces: W10435240) |
|
$ 29.66 | |||||
| 8 | W10575334 | Housing, Dispenser Assembly (includes Items 2, 3 & 7) (Replaces: W10365881) |
|
$ 222.25 | |||||
| 9 | W11084830 | Separator, With Selection Slider (Replaces: W10411442) |
|
$ 171.68 | |||||
| 10 | WPW10365887 | Siphon, Bleach/softener (Replaces: W10365887) |
|
Immediately | $ 93.85 | ||||
| 11 | WPW10365885 | Drawer, Detergent (complete) (Replaces: W10365885) |
|
$ 115.17 |
