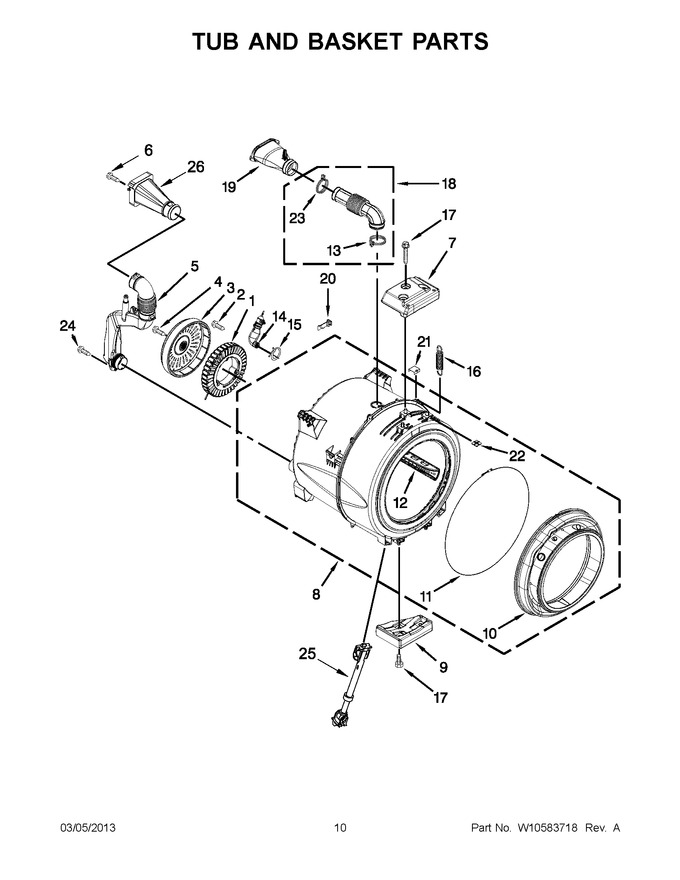

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10365754		Stator, Motor   (Replaces: W10213978)			Immediately	$ 508.67
2	WPW10253476		Screw, Stator Mounting   (Replaces: W10253476)				$ 8.78
3	W10365755		Rotor, Motor   (Replaces: W10213980)				$ 362.05
4	W11253212		Screw, Rotor Mounting   (Replaces: W10253477)			Immediately	$ 14.81
5	W10261582		Pipe, Ventilation Assembly				$ 51.11
6	WP8540282		Screw   (Replaces: 8540282)				$ 11.56
7	W10452854		Counterweight, Top		Appelez-nous	-
8	WPW10737541		Tub Assembly, Drum   (Replaces: W10451926)				$ 1,802.46
9	W10452855		Counterweight, Bottom		Appelez-nous	-
10	W11106747		Bellow   (Replaces: W10340443)			Immediately	$ 224.25
11	W11218344		Retainer, Bellow To Tub   (Replaces: W10237502)			Immediately	$ 34.63
12	W10697830		Baffle, Tub   (Replaces: W10279544)				$ 122.86
13	W10353599		Clamp, Hose				$ 28.65
14	WPW10260500		Airtrap Assembly   (Replaces: W10260500)				$ 38.29
15	371499		Clamp, Hose				$ 12.95
16	W11266649		Spring, Suspension (set Of 2)   (Replaces: W10312146)				$ 18.30
17	W10261496		Screw, Counterweight				$ 13.23
18	WPW10568614		Vent Hose Coupling Assembly   (Replaces: W10568614)			Immediately	$ 111.05
19	WPW10352818		Vent Tube & Cover   (Replaces: W10352818)				$ 79.37
20	W10316388		Clip, Harness Diverter				$ 10.79
21	WP8540092		Clamp, Tub   (Replaces: 8540092)				$ 7.59
22	WP8182512		Nut, Push-in   (Replaces: 8540072)			Immediately	$ 6.95
23	W10273034		Clamp, Vent Hose				$ 10.69
24	W10306501		Screw		Appelez-nous	-
25	W11415987		Shock Absorber   (Replaces: W10312625)			Immediately	$ 150.98
26	W10460108		Fan, Ventilation Assembly		Appelez-nous	-
