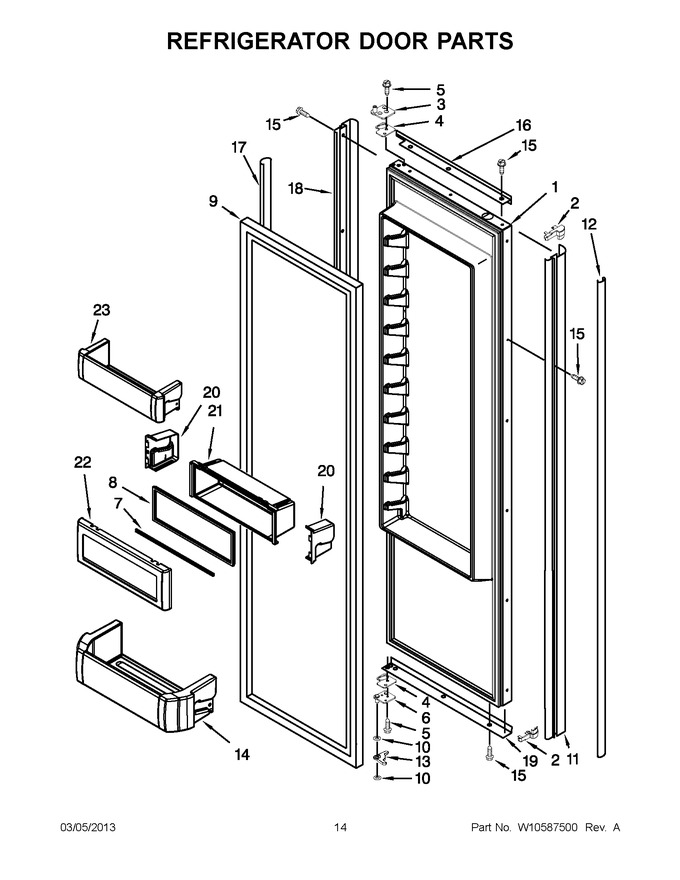

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10193489 | Refrigerator Door Panel |
|
- | |||||
| 2 | 2207457 | Trim, Corner |
|
$ 57.12 | |||||
| 3 | W10484480 | Hinge Assembly, Top |
|
$ 64.04 | |||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 130.37 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 6 | 2252293 | Assembly, Bottom Hinge |
|
- | |||||
| 7 | 2222795 | Rail, Utility Lid |
|
$ 84.11 | |||||
| 8 | WP2222981 | Gasket, Utility Bin (Replaces: 2222981) |
|
$ 214.40 | |||||
| 9 | WP2266901 | Gasket, Door (Replaces: 2222810) |
|
$ 369.84 | |||||
| 10 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 11 | 2309497S | Trim, Door (handle Side) |
|
$ 323.02 | |||||
| 12 | 2314003S | Cover, Trim (handle Side) |
|
$ 174.63 | |||||
| 13 | W11700297 | Cover, Bottom Gap (Replaces: W10482554) |
|
Immediately | $ 38.28 | ||||
| 14 | W10323746 | Shelf, Door (gallon) |
|
$ 108.24 | |||||
| 15 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 16 | 2309485S | Trim, Top Door |
|
- | |||||
| 17 | 2259448S | Trim Assembly, Cover (hinge Side) |
|
$ 179.50 | |||||
| 18 | 2309498S | Trim, Door (hinge Side) |
|
$ 324.38 | |||||
| 19 | 2309491S | Trim, Bottom Door |
|
- | |||||
| 20 | WPW10323172 | Bin, End Cap (right Hand) (Replaces: W10323172) |
|
$ 8.60 | |||||
| 20 | WPW10323173 | Bin, End Cap (left Hand) (Replaces: W10323173) |
|
$ 8.60 | |||||
| 21 | WPW10323035 | Bin, Utility Center (Replaces: W10323035) |
|
$ 84.93 | |||||
| 22 | WPW10131132 | Door, Utility Bin (Replaces: W10131132) |
|
$ 75.81 | |||||
| 23 | W10323598 | Bin, Door |
|
$ 104.79 |
