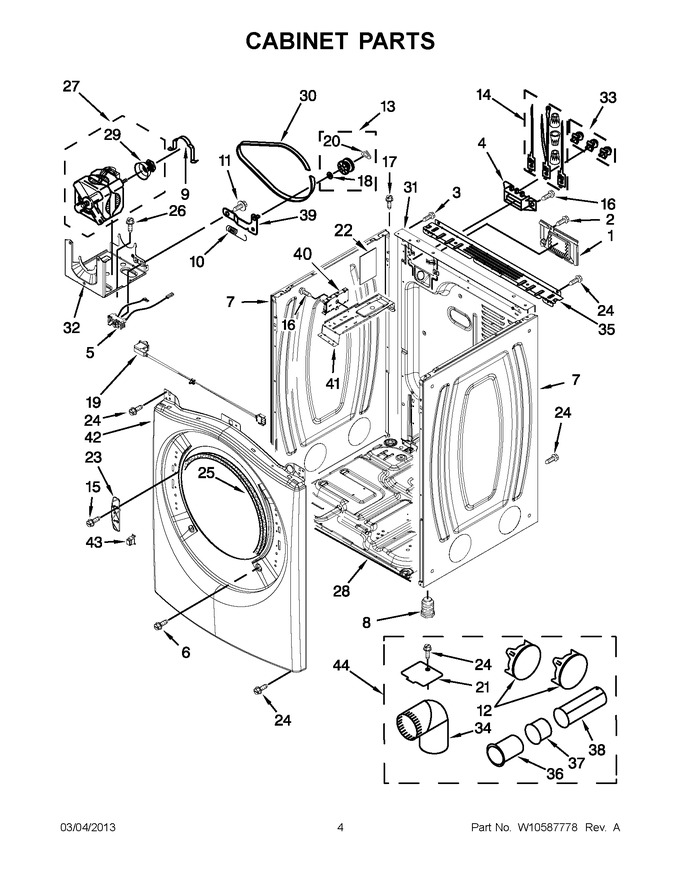

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10316167 | Cover, (terminal Block) (Replaces: W10316167) |
|
$ 104.04 | |||||
| 2 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 3 | W10850756 | Screw (Replaces: 8533974) |
|
$ 8.20 | |||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 5 | W10847984 | Switch, Broken Belt (Replaces: W10411936) |
|
Immediately | $ 26.90 | ||||
| 6 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 7 | W11315726 | Panel, Side (chrome Shadow) (Replaces: W10468496) |
|
Immediately | $ 321.64 | ||||
| 7 | W11233548 | Panel, Side (white) (Replaces: W10468495) |
|
$ 261.33 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | WPW10404617 | Plug, Multivent (midnight Grey) (Replaces: W10404617) |
|
$ 75.58 | |||||
| 13 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 32.51 | ||||
| 14 | 279318 | Terminal, Brass & Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 15 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 16 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 17 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 18 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 7.55 | ||||
| 19 | WPW10350906 | Door Switch Snap-in (Replaces: W10350906) |
|
Immediately | $ 81.49 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10354249 | Plate, Cover (Replaces: W10354249) |
|
$ 9.41 | |||||
| 22 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 23.76 | |||||
| 23 | WPW10208250 | Strike, Door (Replaces: W10208250) |
|
$ 43.86 | |||||
| 24 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 25 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 26 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 27 | 279787 | Motor Assembly (Replaces: W10396028) |
|
Immediately | $ 235.65 | ||||
| 28 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 365.36 | |||||
| 29 | W10837625 | Pulley, Motor (Replaces: W10460106) |
|
Immediately | $ 12.77 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 31 | W10487430 | Panel, Rear |
|
Immediately | $ 357.12 | ||||
| 32 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 94.84 | ||||
| 33 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 34 | WPW10416072 | Elbow (Replaces: W10416072) |
|
$ 28.16 | |||||
| 35 | WPW10208382 | Panel, Rear (Replaces: W10208382) |
|
$ 46.18 | |||||
| 36 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 95.95 | |||||
| 37 | WPW10331278 | Exhaust Pipe (short) (Replaces: W10331278) |
|
$ 82.90 | |||||
| 38 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 39 | W10837240 | Assembly, Idler (includes Item 13) (Replaces: W10547287) |
|
Immediately | $ 35.78 | ||||
| 40 | WPW10542001 | Control Board (Replaces: W10542001) |
|
Immediately | $ 372.76 | ||||
| 41 | W10259611 | Bracket, Control |
|
$ 127.30 | |||||
| 42 | W10363953 | Front Panel (includes Door Hinge Bracket) (white) |
|
$ 182.23 | |||||
| 42 | WPW10463309 | Front Panel (includes Door Hinge Bracket) (chrome Shadow) (Replaces: W10463309) |
|
$ 354.98 | |||||
| 43 | W11240283 | Spring Catch Assembly (Replaces: W10208401) |
|
Immediately | $ 28.04 | ||||
| 44 | W10323246 | Dryer Exhaust Kit (for Side & Bottom Venting) Kit, 4-way Venting |
|
Immediately | $ 89.96 | ||||
| NI | 49621 | Foot-optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
