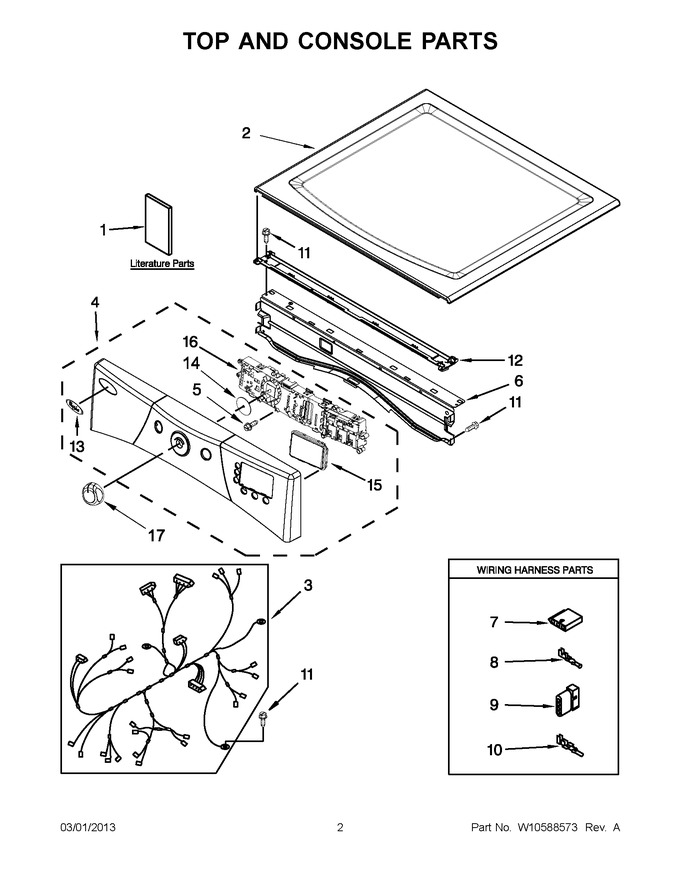

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Burner Assembly


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10385092		Use & Care Guide		Appelez-nous	-
1	W10443109		Tech Sheet		Appelez-nous	-
1	W10443045		Installation Instructions		Appelez-nous	-
2	WPW10336080		Top (white)   (Replaces: W10336080)				$ 298.79
3	W10555103		Harness, Main		Appelez-nous	-
4	W10380697		Panel, Console				$ 437.12
5	W10006580		Screw		Appelez-nous	-
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 170.79
7	353424		Connector, Sensor				$ 18.95
8	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.25
9	3936144		Teminal				$ 19.10
10	94613		Terminal, (male)		Appelez-nous	-
11	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
12	WPW10266747		Channel-water, Dryer   (Replaces: W10266747)				$ 66.56
13	W10338425		Badge		Appelez-nous	-
14	8572039		Seal, User Interface		Appelez-nous	-
15	W10212742		Window, Led				$ 22.30
16	W10387226		Assembly, User Interface				$ 235.47
17	WPW10416463		Knob, Control   (Replaces: W10416463)				$ 55.42
