SELECT A DIAGRAM

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Freezer Liner Parts
02 - Freezer Liner Parts

Diagram for 03 - Freezer Door
03 - Freezer Door

Diagram for 04 - Refrigerator Liner Parts
04 - Refrigerator Liner Parts

Diagram for 05 - Refrigerator Door
05 - Refrigerator Door

Diagram for 06 - Unit Parts
06 - Unit Parts

Diagram for 07 - Shelf Parts
07 - Shelf Parts

Diagram for 08 - Optional Parts (not Included)
08 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12977869WQ Freezer Door Assembly (includes Illus. 14) (white)   (Replaces: 12977869W) Special Order $ 1,021.67

2 W10189639K Handle Assembly (white) Appelez-nous -
3 W10443315 Gasket, Door (white)   (Replaces: W10443315N) Special Order $ 193.98

4 WPW10288153 Screw   (Replaces: W10288153) In-Stock Immediately $ 9.65


    View Diagram in Separate Window     Print Icon   Print Part List

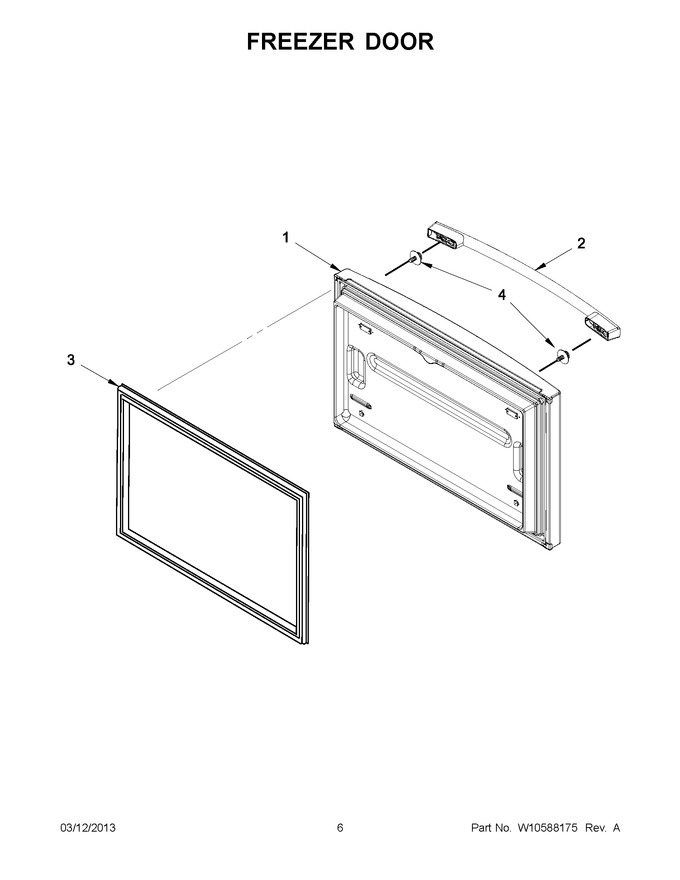

Diagram for GX2SHBXVQ05
