| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
2320601 |
|
Shield, Water Valve |
|
|
|
$ 120.16 |
|
|
| 2 |
W10508659 |
|
Assembly, Icemaker Wire |
|
|
|
$ 134.19 |
|
|
| 3 |
WP628379 |
 |
Clip, Thermal Fuse (Replaces: 628379) |
|
|
|
$ 11.10 |
|
|
| 4 |
W11565275 |
 |
Tube, Filter Inlet (Replaces: W10296807) |
|
|
|
$ 67.89 |
|
|
| 7 |
W11533506 |
 |
Tube, Filter Outlet (Replaces: W10437853) |
|
|
Immediately |
$ 33.15 |
|
|
| 8 |
WPW10159842 |
 |
Valve, Solenoid (Replaces: W10159842) |
|
|
Immediately |
$ 336.00 |
|
|
| 9 |
W10833902 |
|
Clamp, Tube (Replaces: 2221070) |
|
|
|
$ 11.54 |
|
|
| 10 |
2320559 |
|
Support, Valve |
|
|
|
$ 88.79 |
|
|
| 11 |
WP2198641 |
 |
Bracket, Ice Maker Cover (Replaces: 2198641) |
|
|
|
$ 7.55 |
|
|
| 12 |
WP488366 |
 |
Clip, Water Tube (Replaces: 2208136) |
|
|
|
$ 11.92 |
|
|
| 13 |
W11212166 |
 |
Fitting, Water (Replaces: W10357286) |
|
|
Immediately |
$ 40.93 |
|
|
| 14 |
WPW10289690 |
 |
Cover, Icemaker (Replaces: W10289690) |
|
|
Immediately |
$ 8.82 |
|
|
| 15 |
WPW10141604 |
|
Screw (Replaces: W10141604) |
|
|
|
$ 8.85 |
|
|
| 16 |
WPW10190929 |
 |
Mold & Heater Assembly (Replaces: W10122527) |
|
|
|
$ 233.52 |
|
|
| 17 |
N/P |
|
Motor, (not Serviceable Order Item 28) |
|
Appelez-nous
|
- |
|
|
|
| 18 |
WPW10272168 |
 |
Cup, Water Fill (Replaces: W10272168) |
|
|
|
$ 76.48 |
|
|
| 19 |
WP627843 |
 |
Ejector (Replaces: 627843) |
|
|
|
$ 87.78 |
|
|
| 20 |
WPW10272161 |
|
Stripper, Ice (Replaces: W10272161) |
|
|
|
$ 72.82 |
|
|
| 21 |
WP2195914 |
 |
Support, Housing (Replaces: 2194712) |
|
|
|
$ 109.80 |
|
|
| 22 |
WP2315522 |
 |
Retainer, Thermostat (Replaces: 2315522) |
|
|
|
$ 11.60 |
|
|
| 23 |
WP627985 |
 |
Thermostat (Replaces: W10290336) |
|
|
|
$ 114.64 |
|
|
| 24 |
8533917 |
|
Screw |
|
|
|
$ 14.04 |
|
|
| 25 |
W10279391 |
|
Wire Assembly, Smart Valve |
|
|
|
$ 134.19 |
|
|
| 26 |
WP681249 |
 |
Screw (Replaces: 489276) |
|
|
Immediately |
$ 8.25 |
|
|
| 27 |
WPW10504753 |
|
Cover, Icemaker (Replaces: W10504753) |
|
|
|
$ 96.55 |
|
|
| 28 |
8201515 |
 |
Assembly, Module (Replaces: W10223929) |
|
|
Immediately |
$ 159.78 |
|
|
| 29 |
489136 |
|
Screw |
|
|
|
$ 10.80 |
|
|
| 30 |
WPW10141645 |
|
Screw (Replaces: W10141645) |
|
|
|
$ 8.05 |
|
|
| 31 |
W11624204 |
|
Screw (Replaces: 486194) |
|
|
|
$ 14.72 |
|
|
| 32 |
2252228 |
|
Bracket, Icemaker Mounting |
|
Appelez-nous
|
- |
|
|
|
| 33 |
WP489069 |
 |
Screw (Replaces: 304392) |
|
|
Immediately |
$ 8.40 |
|
|
| 100 |
WPW10277448 |
 |
Complete Icemaker Assembly (Replaces: W10277448) |
|
|
Immediately |
$ 292.73 |
|
|
| NI |
N/P |
|
Following Parts Not Illustrated |
|
Appelez-nous
|
- |
|
|
|
| NI |
8537055 |
|
Cleaner, Stainless Steel (2 Oz) Ice Container Assembly |
|
Appelez-nous
|
- |
|
|
|
| NI |
W10129081 |
 |
Handle Kit For Previous Architect Series (stainless) |
|
|
|
$ 254.74 |
|
|

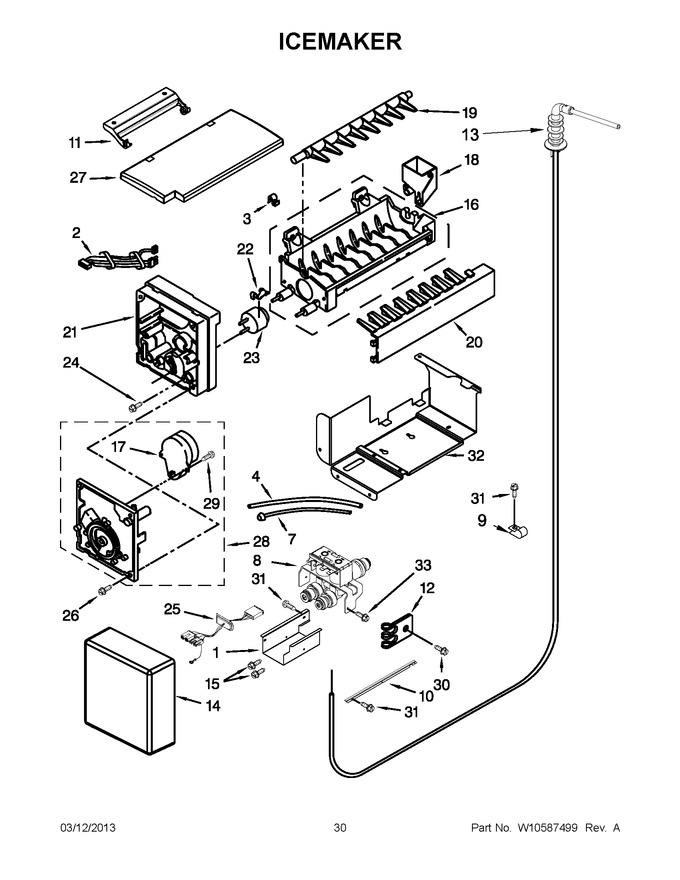

View Diagram in Separate Window
