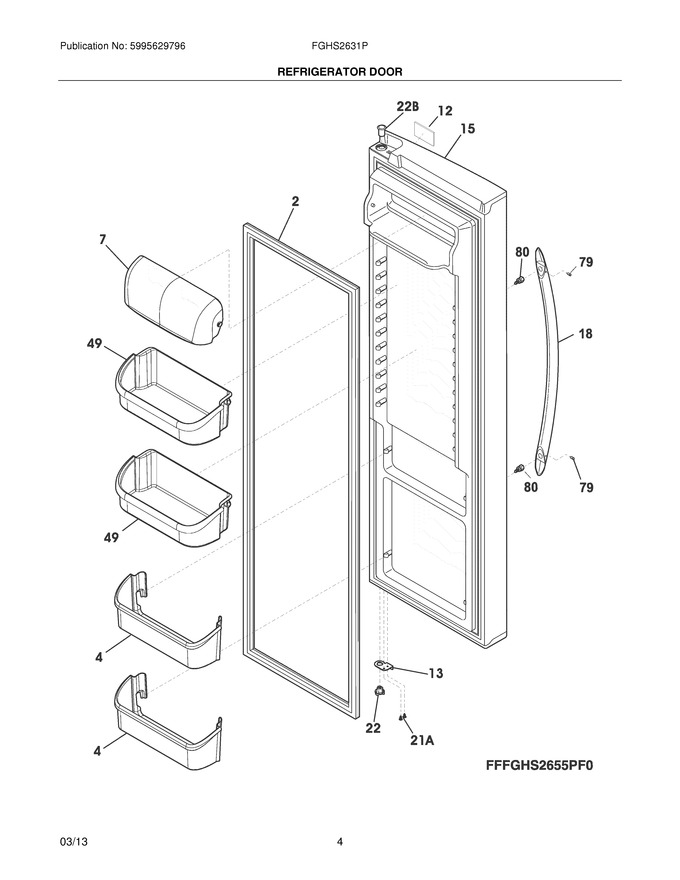

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240323002 | Bin-door,pseudo ,clear ,bottom |
|
Immediately | $ 74.68 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 12 | 242015201 | Label-nameplate |
|
Immediately | $ 7.67 | ||||
| 13 | 241990201 | Door Stop,black ,ref |
|
$ 23.63 | |||||
| 15 | 242178116 | Door-refr,black ,complete |
|
- | |||||
| 18 | 241930103 | Handle-door,black |
|
$ 237.76 | |||||
| 22 | 241990301 | Bearing-hinge,gray |
|
$ 7.88 | |||||
| 49 | 240356402 | Bin-door,gallon (Replaces: 241808205) |
|
Immediately | $ 118.70 | ||||
| 79 | 218755405 | Screw-set,10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 20.67 | ||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22B | 241760404 | Bearing,hinge ,top |
|
$ 14.18 | |||||
| F2 | 241786005 | Refrigerator Door Gasket, Grey, Magnetic |
|
Immediately | $ 250.69 | ||||
| NI | 241601002 | Wrench,allen |
|
- |
