SELECT A DIAGRAM

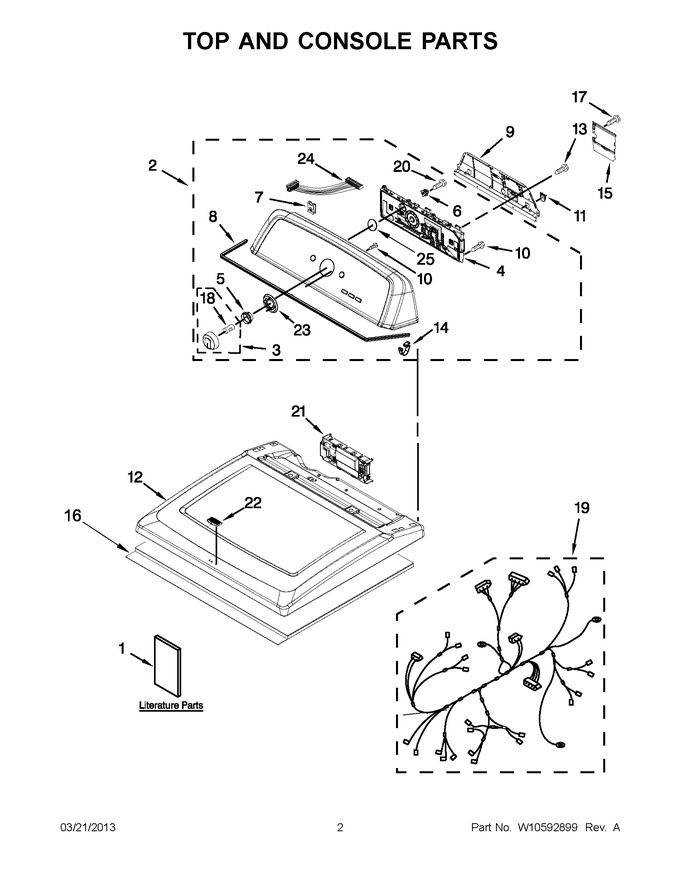

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096989		Guide, Use & Care		Appelez-nous	-
1	W10563341		Installation Instructions		Appelez-nous	-
1	W10417013		Tech Sheet		Appelez-nous	-
1	W10287249		Wiring Diagram		Appelez-nous	-
2	W10459653		Console Assembly (cosmetallic)				$ 343.38
3	WPW10251384		Knob Assembly (chrome)   (Replaces: W10251384)				$ 64.58
4	WPW10272644		Assembly, User Interface   (Replaces: W10272644)				$ 313.89
5	W10326923		Spacer, Knob		Appelez-nous	-
6	W10274524		Tensioner-fascia		Appelez-nous	-
7	W11213336		Nut, ``u``   (Replaces: W10298336)				$ 8.13
8	W10280079		Seal, Console		Appelez-nous	-
9	W10550615		Panel, Rear Console				$ 116.83
10	3196172		Screw			Immediately	$ 13.47
11	W10279552		Plug-upper (rear Panel)		Appelez-nous	-
12	W10459652		Top (cosmetallic)				$ 94.27
13	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 134.77
16	W10123956		Panel, Dampening		Appelez-nous	-
17	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 8.25
18	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
19	W10287252		Wiring Harness		Appelez-nous	-
20	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
21	WPW10214009		Ccu-control   (Replaces: W10214009)				$ 395.99
22	W10492808		Badge				$ 59.82
23	W10305134		Bezel, Cycle Trim				$ 26.37
24	W10285494		Cable, User Interface		Appelez-nous	-
25	W10323092		Seal, User Interface		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
