Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3392918 Window Appelez-nous -
2 WPW10279703 Assembly, Hinge & Pin   (Replaces: W10279703) Special Order $ 75.83

3 3392914 Frame, Window Appelez-nous -
4 3392915 Gasket, Window Special Order $ 58.46

5 WP488627 Screw   (Replaces: 342055) Special Order $ 8.11

6 W10850046 Screw   (Replaces: 9742177) In-Stock Immediately $ 7.55

7 W10191265 Plug, Hinge (white) Special Order $ 46.49

8 WP3390735 Seal, Door   (Replaces: 3390735) Special Order $ 137.13

9 279570 Assembly, Door Catch   (Replaces: 3392538) In-Stock Immediately $ 8.89

10 WPW10213202 Handle, Door   (Replaces: W10213202) In-Stock Immediately $ 86.43

11 W10244331 Inner Door (white)   (Replaces: W10323063) Appelez-nous -
12 W10322548 Outer Door (white) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

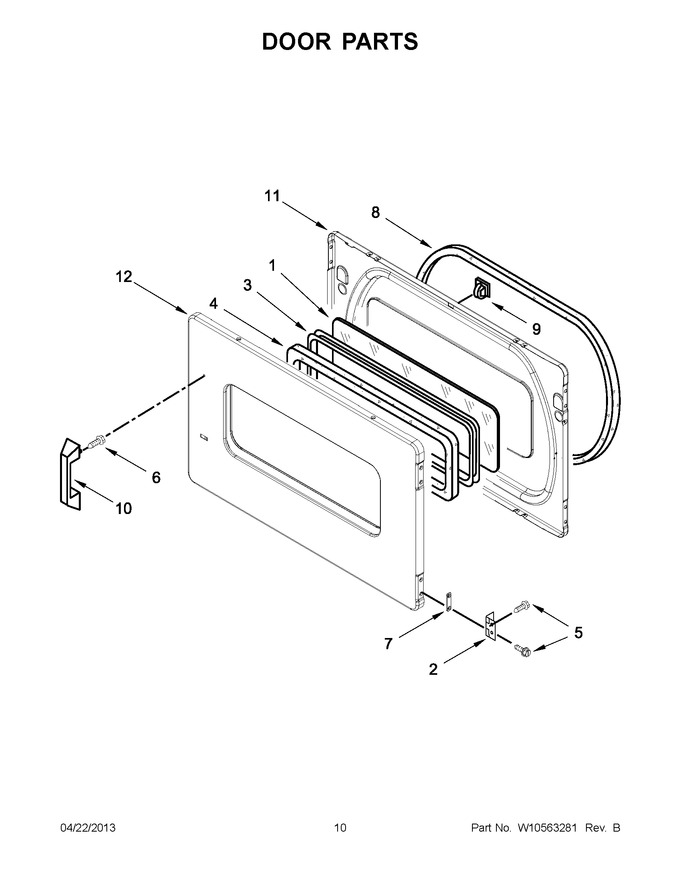

Diagram for MLG24PRAWW3
