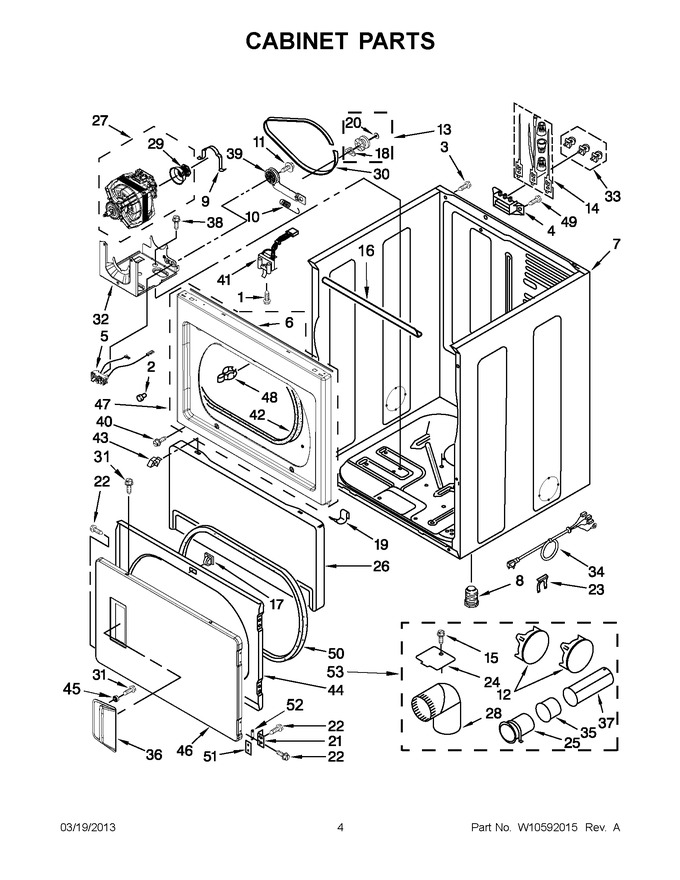

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3395530		Screw   (Replaces: 697773)				$ 7.70
2	693152		Bumper				$ 10.96
3	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
5	W10847984		Switch, Broken Belt   (Replaces: W10411936)			Immediately	$ 26.90
6	W10312811		Seal-spill Guard				$ 64.50
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 419.21
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 25.68
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 24.57
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.02
12	WPW10404617		Plug, Multivent (white)   (Replaces: 49252)				$ 71.98
13	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
14	279318		Terminal, Brass & Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
15	WPW10139210		Screw   (Replaces: 3390646)				$ 7.50
16	W10236068		Bracket, Cabinet				$ 24.47
17	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.89
18	WPW10512946		Washer, Tri Ring   (Replaces: 690997)			Immediately	$ 8.80
19	WPW10291934		Clip   (Replaces: W10291934)				$ 7.75
20	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.19
21	W11175815		Assembly, Hinge & Pin (silver)   (Replaces: 3389247)				$ 81.41
22	WP488627		Screw   (Replaces: 342055)				$ 7.57
23	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 7.40
24	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.96
25	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 91.38
26	WP3406797		Panel, Toe (includes Item. 2) (white)   (Replaces: 697215)				$ 238.33
27	279787		Assembly, Motor   (Replaces: W10396028)			Immediately	$ 235.65
28	WPW10416072		Elbow   (Replaces: 49026)				$ 26.82
29	W10837625		Pulley, Motor   (Replaces: W10460106)			Immediately	$ 12.16
30	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 100.30
31	WPW10273971		Screw   (Replaces: W10192860)			Immediately	$ 7.19
32	W11481730		Bracket, Motor Mounting   (Replaces: W10242878)			Immediately	$ 87.83
33	279393		Screw Kit, Terminal Block			Immediately	$ 47.37
34	W11095079		Cord, Power   (Replaces: 8579325)			Immediately	$ 131.66
35	WPW10331278		Pipe, Exhaust (short)   (Replaces: 8563750)				$ 78.95
36	WPW10284182		Handle, Door (white)   (Replaces: W10284182)			Immediately	$ 94.32
37	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 88.80
38	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
39	W10837240		Assembly, Idler   (Replaces: W10547287)			Immediately	$ 35.78
40	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
41	WP3406107		Switch, Door   (Replaces: 3406107)			Immediately	$ 31.20
42	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
43	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
44	280083		Door, Rear   (Replaces: W10323061)				$ 287.02
45	W10294344		Spacer, Handle				$ 11.78
46	W10322551		Door, Front (white)				$ 156.74
47	W10193554		Panel, Upper Front (white)		Appelez-nous	-
48	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
49	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
50	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
51	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 11.11
52	W10191265		Plug, Hinge Screw (white)				$ 44.28
53	WPW10131132		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)   (Replaces: W10331132)				$ 72.20
NI	49621		Foot, Optional Extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
