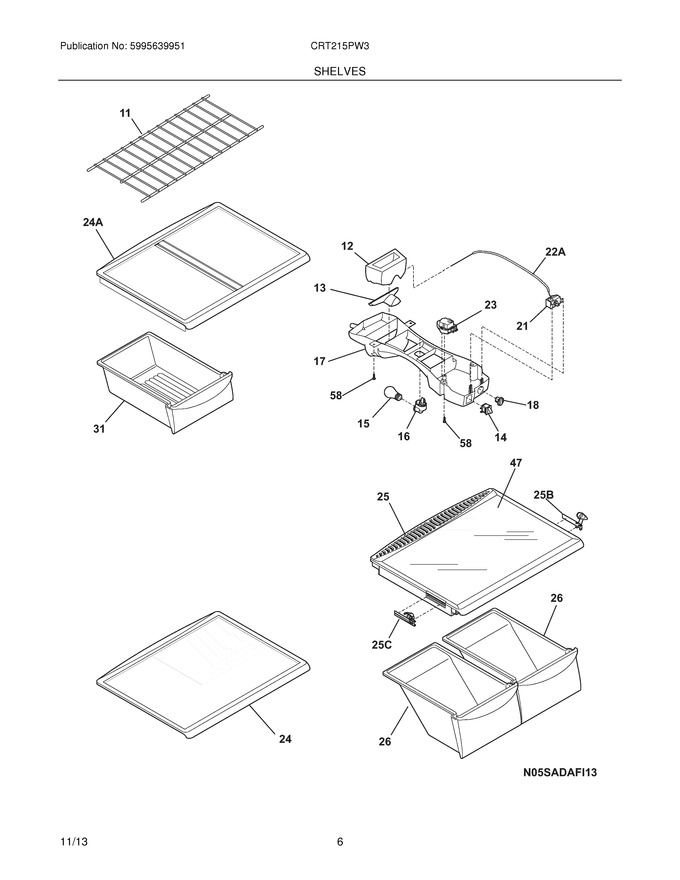

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 240358006 | Shelf,freezer ,full-width ,wire |
|
$ 45.41 | |||||
| 12 | 240545901 | Diffuser-air,top |
|
$ 77.96 | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 46.46 | ||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 22.75 | ||||
| 16 | 241559801 | Socket-light |
|
$ 80.75 | |||||
| 17 | 240368105 | Box-control,front (Replaces: 240368103) |
|
Immediately | $ 144.93 | ||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 24 | 242064615 | Shelf-``spill-safe``,sliding |
|
- | |||||
| 25 | 240364790 | Cover-crisper Pan |
|
$ 135.66 | |||||
| 26 | 240343803 | Pan-crisper,(2) |
|
Immediately | $ 191.01 | ||||
| 31 | 240530811 | Pan-meat,w/o Graphics ,clear (Replaces: 240530803) |
|
Immediately | $ 150.86 | ||||
| 47 | 240350609 | Insert-pan Cover,glass |
|
$ 180.33 | |||||
| 58 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 15.75 | |||||
| 21No. | 241537103 | Control-temperature (Replaces: 5304445058) |
|
Immediately | $ 80.34 | ||||
| 22A | 240468202 | Tube,sensor Sleeve ,31 Inch ,plastic ,white |
|
$ 10.11 | |||||
| 24A | 240358904 | Shelf-fixed,spill Safe ,w/meat Pan Hang |
|
- | |||||
| 25B | 241613501 | Control-humidity,rh |
|
Immediately | $ 13.39 | ||||
| 25C | 241613502 | Control-humidity,lh |
|
$ 53.09 | |||||
| F14 | 241554901 | Switch-light/lamp |
|
$ 78.75 | |||||
| F23 | 215846604 | Timer-defrost (Replaces: 241809402) |
|
Immediately | $ 27.31 | ||||
| FNI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 88.99 | ||||
| NI | 5304455649 | Screw,pan Hd ,6-20 X 0.438 |
|
$ 18.90 | |||||
| NI | 218743613 | Tape,aluminum ,3`` X 7`` |
|
- |
