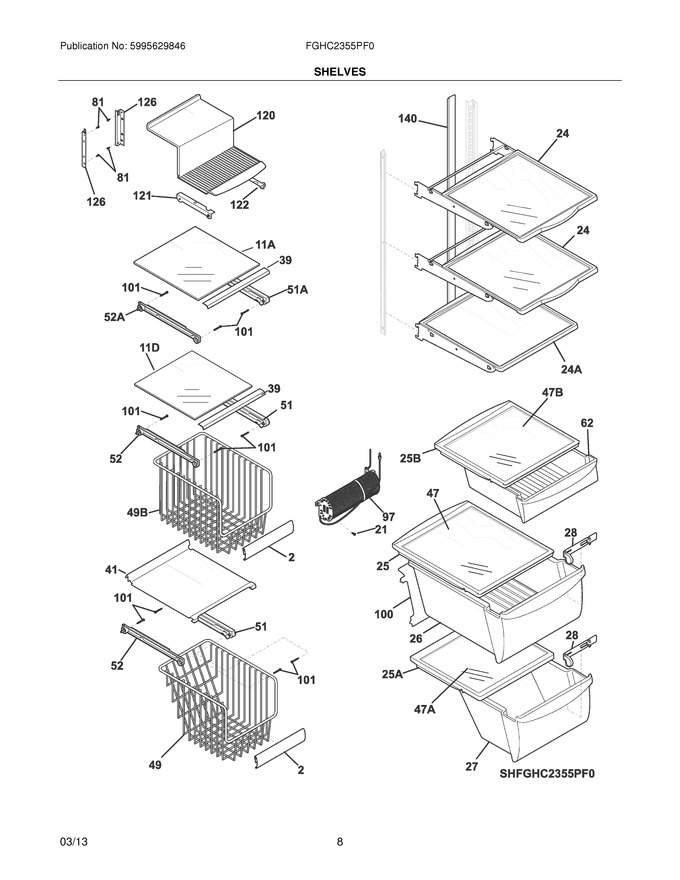

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510605		Trim-basket		Appelez-nous	-
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 16.01
24	240350160		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350158)			Immediately	$ 162.62
25	240599301		Cover-crisper Pan,upper			Immediately	$ 104.87
26	240351061		Pan-crisper,upper			Immediately	$ 122.23
27	240351240		Pan-crisper,lower				$ 226.05
28	240362201		Control-humidity				$ 77.18
39	240367603		Trim-shelf,11.65`` ,front				$ 82.69
41	241637601		Baffle-air				$ 87.05
47	240350649		Insert-pan Cover,glass			Immediately	$ 137.66
49	241515001		Basket-sliding				$ 209.10
51	241514501		Hanger-basket,rh				$ 81.90
52	241514601		Hanger-basket,lh				$ 85.05
62	241974604		Pan-meat   (Replaces: 241974601)				$ 146.22
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
97	242220510		Water Tank   (Replaces: 241532007)				$ 133.09
100	240326304		Cover-water Tank				$ 81.74
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 14.96
101	241637202		Screw,hex Sems Head ,8-18ab X 1-3/4				$ 5.90
120	241691701		Shelf-ice Cream				$ 82.69
121	241504701		Rail-ice Cream Shelf,lh				$ 71.66
122	241504702		Rail-ice Cream Shelf,rh				$ 83.42
126	241674401		Channel,auger Mtg ,lh				$ 52.76
126	241674402		Channel,auger Mtg ,rh				$ 48.04
140	241812502		Channel,wtr Tube Cover				$ 76.97
11A	240443358		Shelf-freezer,glass ,upper				$ 107.86
11D	241711213		Shelf-freezer,glass ,lower   (Replaces: 240443357)				$ 96.06
24A	240355278		Shelf-``spill-safe``,fixed		Appelez-nous	-
25A	240350903		Cover-crisper Pan,lower				$ 102.21
25B	240599803		Frame-deli Cover,upper			Immediately	$ 100.61
47A	240350603		Insert-pan Cover,glass			Immediately	$ 128.36
47B	240443391		Insert-pan Cover,glass			Immediately	$ 137.35
49B	241514901		Basket-sliding,upper ,full		Appelez-nous	-
51A	241514701		Hanger-shelf Glass,rh				$ 70.88
52A	241514801		Hanger-shelf Glass,lh				$ 381.94
NI	242200102		Clip,tubing ,90 Deg Elbow   (Replaces: 242200101)				$ 11.81
NI	241806601		Connector-water,straight ,5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 78.40
NI	240349801		Clip-slide,pan				$ 22.75
NI	240362101		Clip-slide,cover				$ 52.25
NI	241595202		Clip-slide,crisper				$ 20.22
NI	241781601		Seal-return Air				$ 10.11
NI	242146254		Label,energy Guide		Appelez-nous	-
