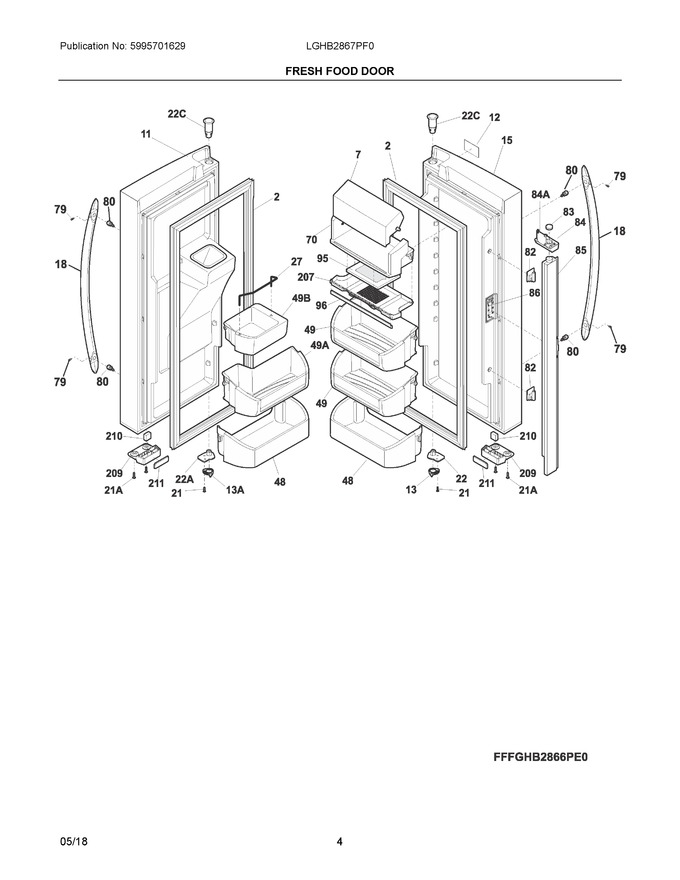

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket-refr Door, Gray, Magnetic (Replaces: 241778307) |
|
Immediately | $ 99.87 | ||||
| 7 | 242011401 | Door-dairy, Removable |
|
- | |||||
| 11 | 242185617 | Door-refr, Stainless, Lh |
|
$ 580.47 | |||||
| 12 | 242015201 | Label-nameplate |
|
Immediately | $ 7.67 | ||||
| 13 | 241868401 | Door Stop, Refrig Rh, Plated |
|
$ 20.48 | |||||
| 15 | 241988076 | Door-refr, Stainless, Rh |
|
$ 781.38 | |||||
| 18 | 241930101 | Handle-door, Stainless |
|
$ 178.76 | |||||
| 21 | 242017501 | Screw, 10-32 X 0.750 |
|
$ 17.33 | |||||
| 22 | 242075601 | Cam, Upper Hinge, Rh |
|
$ 23.31 | |||||
| 27 | 241752703 | Retainer, Tall Bottle |
|
$ 61.51 | |||||
| 48 | 242071401 | Bin-door, Pseudo, White |
|
Immediately | $ 102.21 | ||||
| 49 | 242037201 | Bin-door, Gallon |
|
Immediately | $ 124.22 | ||||
| 70 | 241804604 | Compartment-dairy, Removable |
|
- | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw-shoulder, #10 Ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 82 | 241779401 | Hinge-mullion, Upper/lower, Flipper |
|
Immediately | $ 24.43 | ||||
| 83 | 241812202 | Magnet, Freezer Drawer |
|
$ 80.33 | |||||
| 84 | 242190401 | Guide-mullion, Magnet Cover, Flipper |
|
$ 16.70 | |||||
| 85 | 241778811 | Flipper Mullion Assembly, W/heater |
|
Immediately | $ 296.89 | ||||
| 86 | 241779802 | Hinge-mullion, Center, Flipper (Replaces: 241779801) |
|
Immediately | $ 45.83 | ||||
| 95 | EAFCBF | Filter-air (Replaces: 242047801) |
|
Immediately | $ 30.71 | ||||
| 96 | 242048006 | Door-air Filter (Replaces: 242048002) |
|
$ 18.54 | |||||
| 207 | 242047901 | Housing-air Filter |
|
$ 89.32 | |||||
| 209 | 242291001 | Housing, Magnet, White |
|
$ 22.75 | |||||
| 210 | 241779101 | Magnet, Door |
|
Immediately | $ 34.65 | ||||
| 211 | 241979601 | Bumper, Rubber, White |
|
$ 25.20 | |||||
| 13A | 241868402 | Door Stop, Refr Lh, Plated |
|
$ 20.48 | |||||
| 21A | 5304453707 | Screw, #8-18 (Replaces: 241953901) |
|
Immediately | $ 17.69 | ||||
| 22A | 242075602 | Cam, Upper Hinge, Lh |
|
$ 27.80 | |||||
| 22C | 241760401 | Bearing, Hinge, Top |
|
Immediately | $ 21.26 | ||||
| 49A | 242037202 | Bin-door, 2-liter |
|
Immediately | $ 117.16 | ||||
| 49B | 242011701 | Bin-door, Dispenser |
|
$ 57.09 | |||||
| 84A | 5303918644 | Cover-mullion, Magnet Cover (Replaces: 242190501) |
|
$ 46.04 | |||||
| NI | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 18.11 | ||||
| NI | 242040802 | Harness-wiring, Door |
|
$ 103.74 | |||||
| NI | 5303918596 | Dispenser Heater Kit, 115 (Replaces: 5303918371) |
|
$ 352.64 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NIA | 5304520993 | Harness-wiring, Flipper Mullion (Replaces: 241788401) |
|
Immediately | $ 46.63 | ||||
| NIA | 241601001 | Wrench, Allen |
|
- | |||||
| NIB | 240451503 | Screw (Replaces: 242064001) |
|
$ 4.21 | |||||
| NIC | 242068601 | Bumper, Flipper Mullion |
|
$ 16.01 |
