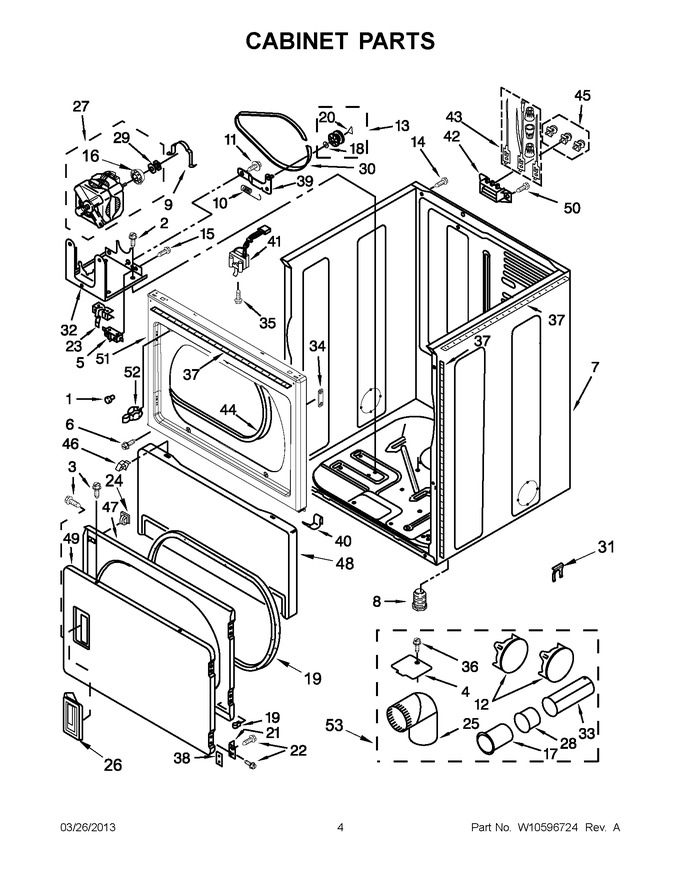

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	693152		Bumper				$ 11.51
2	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
3	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
4	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 9.41
5	WP8318457		Switch, Broken Belt   (Replaces: 8318457)				$ 44.19
6	W10891954		Screw   (Replaces: 8281212)		Appelez-nous	-
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 440.17
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10404617)				$ 75.58
13	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
14	W10850756		Screw   (Replaces: 8533974)				$ 8.20
15	3400934		Assembly, Screw & Insulator		Appelez-nous	-
16	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
17	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 95.95
18	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
19	WP3390735		Seal, Door   (Replaces: 3390735)				$ 137.13
20	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
21	WPW10279703		Assembly, Hinge & Pin   (Replaces: W10279703)				$ 75.83
22	WP488627		Screw   (Replaces: 342055)				$ 8.11
23	W10854043		Lever-switch   (Replaces: W10083220)				$ 30.45
24	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.89
25	WPW10416072		Elbow   (Replaces: 49026)				$ 28.16
26	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 79.54
27	W10416573		Motor, Assembly 50 Hz.   (Replaces: W10289661)				$ 250.80
28	WPW10331278		Exhaust Pipe (short)   (Replaces: W10331278)				$ 82.90
29	3402548		Pulley, Motor (50 Hz)		Appelez-nous	-
30	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 105.32
31	W11704629		Relief, Strain (power Cord)   (Replaces: 8316644)		Appelez-nous	-
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
33	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 93.24
34	W10191265		Plug, Hinge (white)				$ 46.49
35	WP3395530		Screw   (Replaces: 697773)				$ 8.57
36	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
37	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 39.71
38	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 11.67
39	W10837240		Bracket, Idler   (Replaces: W10118754)			Immediately	$ 35.78
40	WPW10291934		Clip   (Replaces: W10291934)				$ 8.14
41	WPW10237959		Switch, Door   (Replaces: W10237959)			Immediately	$ 55.64
42	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
43	279318		Terminal, Brass & Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	280083		Door, Rear   (Replaces: W10323061)				$ 301.37
48	WP3406797		Toe Panel (white)   (Replaces: 697215)				$ 250.25
49	W11663440		Door, Front   (Replaces: W10322546)				$ 272.34
50	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
51	W10193554		Panel, Upper Front (white)		Appelez-nous	-
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
53	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)   (Replaces: W10186596)			Immediately	$ 76.65
NI	49621		Foot, Optional Extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
