SELECT A DIAGRAM

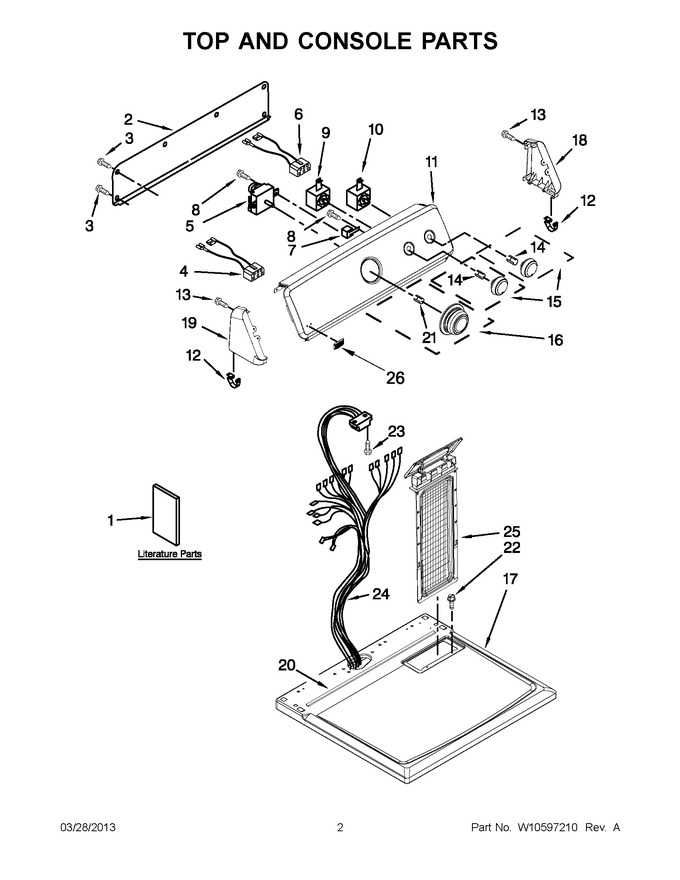

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10396179		Wiring Diagram		Appelez-nous	-
1	W10454277		Use & Care Guide		Appelez-nous	-
1	W10514189		Installation Instructions		Appelez-nous	-
2	W10103406		Panel, Rear (console)				$ 135.31
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
4	W10113080		Wire, Jumper (buzzer)		Appelez-nous	-
5	WP3979617		Timer Assembly (60 Hz.)   (Replaces: 3979617)			Immediately	$ 385.79
6	W10110861		Wire, Jumper Assembly		Appelez-nous	-
7	3952439		Buzzer, Mini		Appelez-nous	-
8	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
9	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
10	WPW10112668		Switch, Push-to-start   (Replaces: W10112668)				$ 128.11
11	W10365104		Panel & Bracket Assembly		Appelez-nous	-
12	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
13	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
15	WPW10317455		Assembly, Control Knob (grey)   (Replaces: W10317455)				$ 63.33
16	WPW10317454		Assembly, Timer Knob (grey)   (Replaces: W10317454)				$ 63.47
17	WPW10225059		Top (white)   (Replaces: W10225059)				$ 250.69
18	WPW10193821		End Cap (right) (white)   (Replaces: W10193821)				$ 74.72
19	WPW10193824		End Cap (left) (white)   (Replaces: W10193824)				$ 74.39
20	W10316616		Seal, Foam				$ 27.79
21	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
22	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
23	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
24	W10386313		Harness, Wiring		Appelez-nous	-
25	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 54.63
26	W10323734		Assembly, Badge				$ 63.95

    View Diagram in Separate Window       Print Part List
