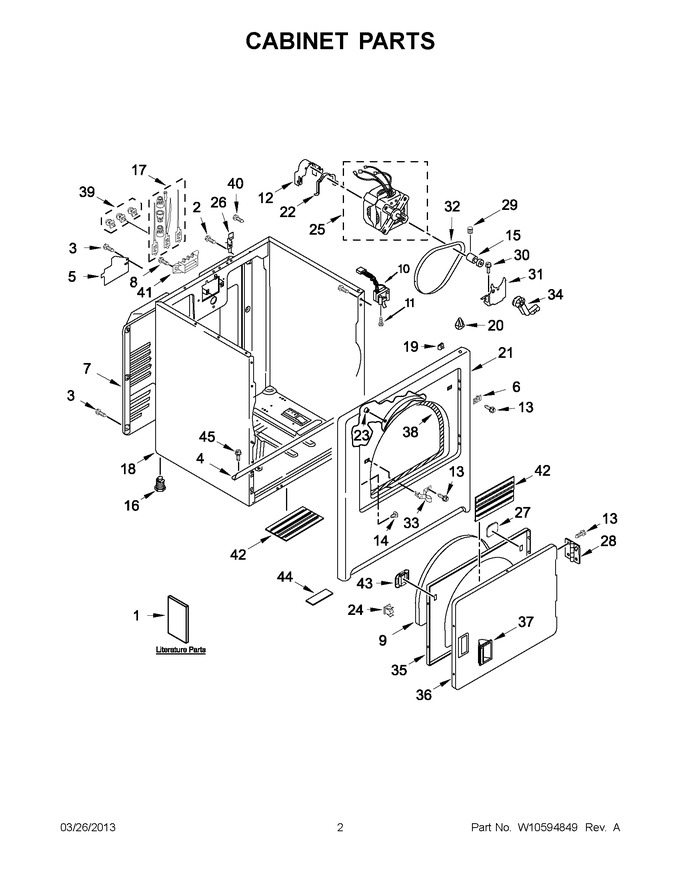

01 - Cabinet Parts
02 - Top And Console Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10514189 | Installation Instructions |
|
- | |||||
| 1 | W10462985 | Use & Care Guide |
|
- | |||||
| 1 | W10396180 | Wiring Diagram |
|
- | |||||
| 2 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W10236073 | Bracket, Cabinet |
|
- | |||||
| 5 | W11298298 | Cover, Terminal Block (Replaces: W10571619) |
|
$ 93.91 | |||||
| 6 | W11684591 | Plug, Strike (Replaces: W10567345) |
|
Immediately | $ 8.13 | ||||
| 7 | 280043 | Panel, Rear (Replaces: W10571724) |
|
$ 358.37 | |||||
| 8 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 9 | W10861521 | Seal, Door (Replaces: W10389572) |
|
Immediately | $ 58.69 | ||||
| 10 | WPW10237959 | Switch, Door (Replaces: 3406109) |
|
Immediately | $ 55.64 | ||||
| 11 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 12 | WP3404162 | Clamp, Motor (with Shield) (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 13 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 14 | WP3404413 | Plug-hole (Replaces: 3404413) |
|
Immediately | $ 8.35 | ||||
| 15 | W11233559 | Pulley Assembly (Replaces: 685011) |
|
$ 119.58 | |||||
| 16 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 17 | 279318 | Terminal, Brass & Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 18 | 8533643 | Cabinet (white) (Replaces: 8530603) |
|
$ 419.22 | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 20 | WP8066092 | Lock, Front Top (Replaces: 8066092) |
|
Immediately | $ 20.48 | ||||
| 21 | W10806345 | Panel, Front (white) (Replaces: W10224853) |
|
$ 244.38 | |||||
| 22 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 23.55 | |||||
| 24 | W11429587 | Assembly, Door Catch (Replaces: W10529190) |
|
Immediately | $ 26.55 | ||||
| 25 | W11618508 | Motor Assembly 50 Hz. (Replaces: W10289660) |
|
$ 365.52 | |||||
| 26 | WP8066217 | Hinge, Top (Replaces: 8066217) |
|
$ 8.21 | |||||
| 27 | W11173656 | Cover, Door Catch (Replaces: W10529198) |
|
$ 8.20 | |||||
| 28 | WPW10362431 | Assembly, Hinge & Pin (Replaces: W10362431) |
|
Immediately | $ 8.28 | ||||
| 29 | 690046 | Screw, Set |
|
- | |||||
| 30 | 3400500 | Bolt |
|
Immediately | $ 14.04 | ||||
| 31 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 32 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 18.15 | ||||
| 33 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 20.99 | ||||
| 34 | WP691366 | Assembly, Idler (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 35 | WPW10463967 | Assembly, Inner Door (Replaces: W10463967) |
|
$ 230.70 | |||||
| 36 | W10861227 | Door, Outer (white) (Replaces: 3402335) |
|
$ 269.26 | |||||
| 37 | W10908280 | Handle, Door (white) (Replaces: W10549554) |
|
$ 90.86 | |||||
| 38 | W11035878 | Assembly, Seal & Bearing (Replaces: W10568603) |
|
Immediately | $ 78.78 | ||||
| 39 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 40 | W10850756 | Screw (Replaces: 8533974) |
|
$ 8.20 | |||||
| 41 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 42 | W10636378 | Pad, Door Handle (Replaces: W10532676) |
|
$ 69.72 | |||||
| 43 | WPW10529197 | Bezel, Door Catch (Replaces: W10529197) |
|
Immediately | $ 25.46 | ||||
| 44 | W10567977 | Pad, Front Panel |
|
- | |||||
| 45 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| NI | 49621 | Foot, Optional Extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
