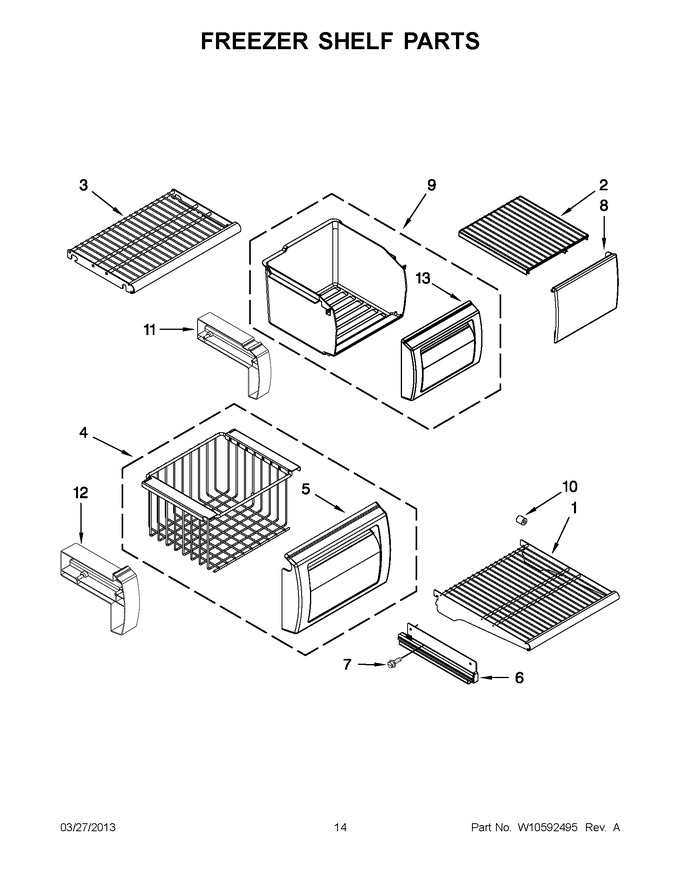

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10175906		Wire, Shelf				$ 79.30
2	W10213535		Cover, Shelf				$ 101.37
3	2302884		Shelf, Fixed				$ 316.40
4	W11318848		Basket, Freezer   (Replaces: 2259082)				$ 181.16
5	W10839856		Front, Basket   (Replaces: 2256270)				$ 103.00
6	WP2259318		Slide, Basket (left Hand)   (Replaces: 2259318)			Immediately	$ 317.35
6	2259317		Slide, Basket (right Hand)				$ 233.29
7	WP8533928		Screw (stainless)   (Replaces: 8533928)			Immediately	$ 8.26
8	2266935		Door, Ice				$ 237.43
9	2266931		Bucket, Ice				$ 162.20
10	2266955		Spacer, Ice Door		Appelez-nous	-
11	W10188511		Spacer, Ice Bucket		Appelez-nous	-
12	W10188539		Spacer, Basket		Appelez-nous	-
13	2266958		Assembly, Ice Bucket Front		Appelez-nous	-
