SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)

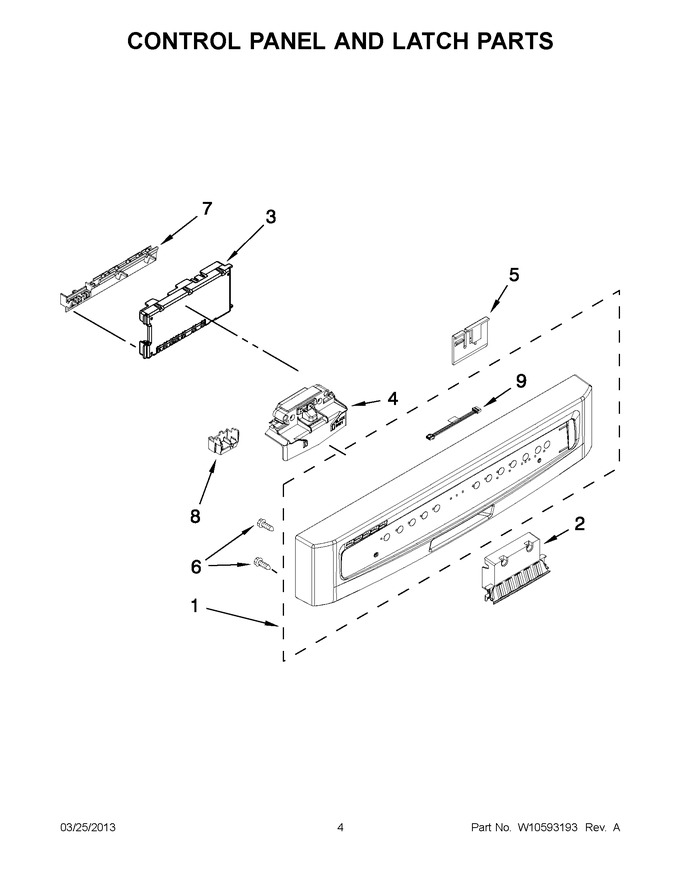

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10811169		Console Assembly (includes Active Overlay & Insert) (stainless)   (Replaces: W10398672)			Immediately	$ 392.69
1	W10811164		Console Assembly (includes Active Overlay & Insert) (black)   (Replaces: W10398669)				$ 385.13
1	W10811166		Console Assembly (includes Active Overlay & Insert) (white)   (Replaces: W10398670)			Immediately	$ 278.64
2	WPW10329510		Handle Pocket (black)   (Replaces: W10329510)				$ 149.88
2	WPW10401479		Handle Pocket (white)   (Replaces: W10401479)				$ 150.50
2	WPW10401481		Handle Pocket (grey)   (Replaces: W10401481)			Immediately	$ 145.38
3	W10595568		Control, Electronic   (Replaces: W10539791)			Immediately	$ 261.22
4	W10619006		Latch Assembly (includes Switch)   (Replaces: W10550100)			Immediately	$ 39.09
5	W11256107		Clip, Control   (Replaces: W10195237)				$ 23.27
6	WPW10348409		Screw   (Replaces: W10348409)			Immediately	$ 8.20
7	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 30.56
8	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
9	WPW10401502		Jumper   (Replaces: W10401502)				$ 22.26

    View Diagram in Separate Window       Print Part List
