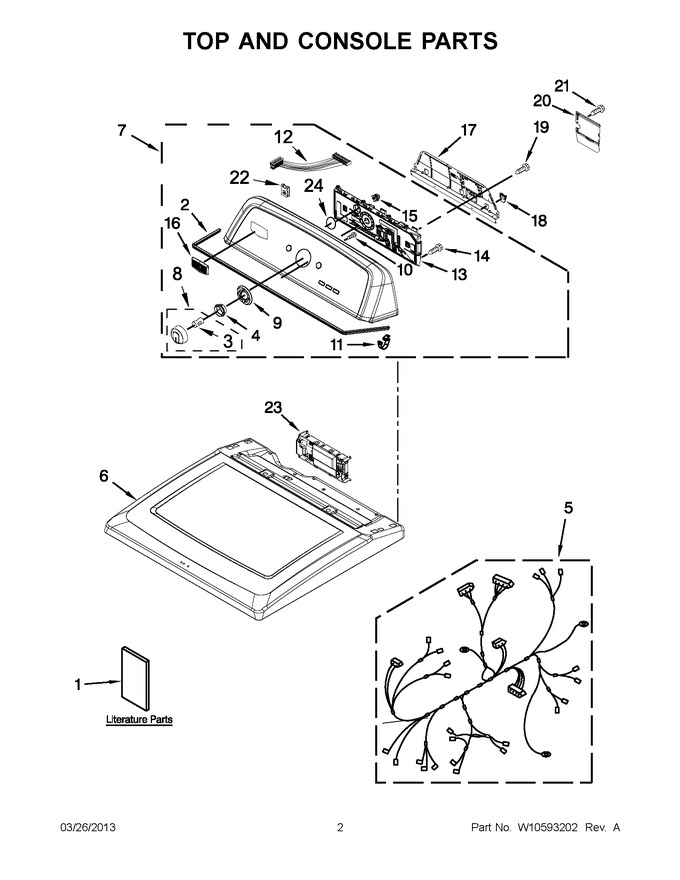

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10514185		Installation Instructions		Appelez-nous	-
1	W10417013		Tech Sheet		Appelez-nous	-
1	W10259284		Wiring Diagram		Appelez-nous	-
1	W10097013		Guide, Use & Care		Appelez-nous	-
2	W10280079		Seal, Console		Appelez-nous	-
3	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
4	W10326923		Spacer, Knob		Appelez-nous	-
5	W10253982		Harness, Wiring		Appelez-nous	-
6	WPW10268730		Top (white)   (Replaces: W10268730)				$ 345.86
7	W10287062		Console Assembly (complete) (white)				$ 305.21
8	WPW10251381		Assembly, Control Knob (chrome)   (Replaces: W10251381)				$ 58.63
9	W10305134		Bezel, Cycle Trim				$ 26.37
10	3196172		Screw			Immediately	$ 13.47
11	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
12	W10285495		Cable, User Interface		Appelez-nous	-
13	WPW10272634		Assembly, User Interface   (Replaces: W10272634)				$ 313.89
14	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
15	W10274524		Tensioner-fascia		Appelez-nous	-
16	W10492808		Badge				$ 59.82
17	W10550615		Panel, Rear Console				$ 116.83
18	W10279552		Plug-upper (rear Panel)		Appelez-nous	-
19	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
20	W10338363		Cover, Terminal Block		Appelez-nous	-
21	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
22	W11213336		Nut, ``u``   (Replaces: W10298336)				$ 8.13
23	WPW10317638		Control, Electronic   (Replaces: W10317638)				$ 344.65
24	W10323092		Seal, User Interface		Appelez-nous	-
