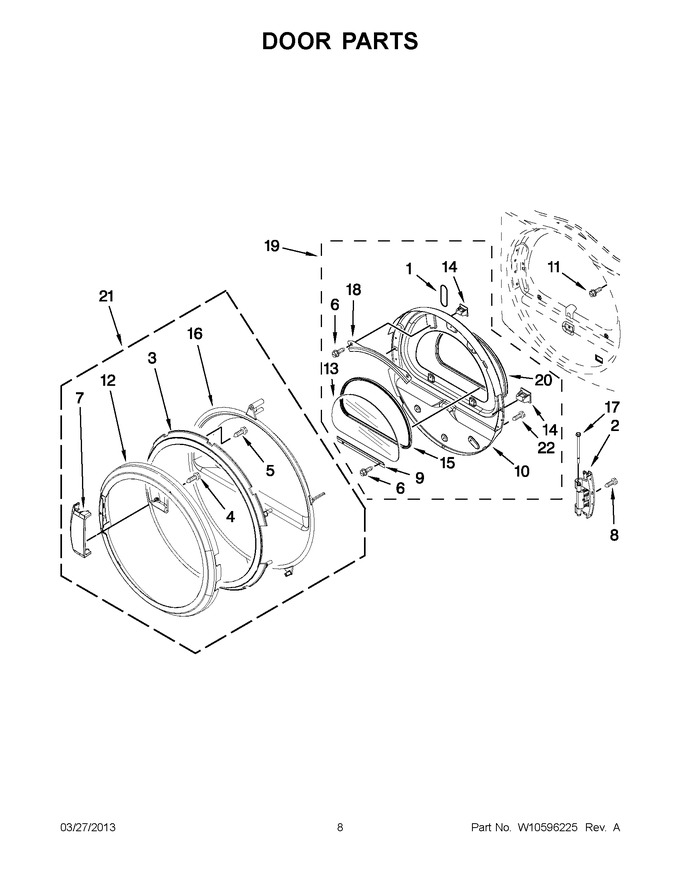

04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10256915		Label, Hinge Hole Cover   (Replaces: W10256915)				$ 82.07
2	WPW10304672		Assembly, Door Hinge   (Replaces: 8578887)			Immediately	$ 232.48
3	W10405431		Door, Screen Intermediate Assembly				$ 158.92
4	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
5	3400618		Screw				$ 67.94
6	WP3373329		Screw   (Replaces: 3393258)				$ 8.52
7	8576578		Handle, Door (chrome)				$ 50.30
8	WPW10159996		Screw   (Replaces: W10159996)				$ 8.52
9	W10822054		Retainer, Window   (Replaces: 8519354)			Immediately	$ 18.01
10	W11690171		Door, Inner   (Replaces: W10363674)				$ 204.49
11	WP355515		Screw   (Replaces: 355515)				$ 8.48
12	8576577		Trim Ring, Outer Door (chrome)				$ 328.52
13	WPW10286878		Window   (Replaces: W10286878)				$ 274.76
14	279570		Assembly, Door Catch   (Replaces: 690081)			Immediately	$ 8.89
15	W11706993		Seal, Window   (Replaces: 8579663)				$ 28.22
16	WP8580059		Door,intermediate   (Replaces: 8580059)				$ 107.50
17	8565087		Screw		Appelez-nous	-
18	8519356		Retainer-window Upper		Appelez-nous	-
19	W10564641		Assembly, Inner Door				$ 226.63
20	WPW10163915		Seal, Door   (Replaces: W10163915)			Immediately	$ 87.42
21	W10371564		Door, Front (chrome)				$ 234.40
22	W11116979		Screw   (Replaces: 8534044)				$ 13.76
