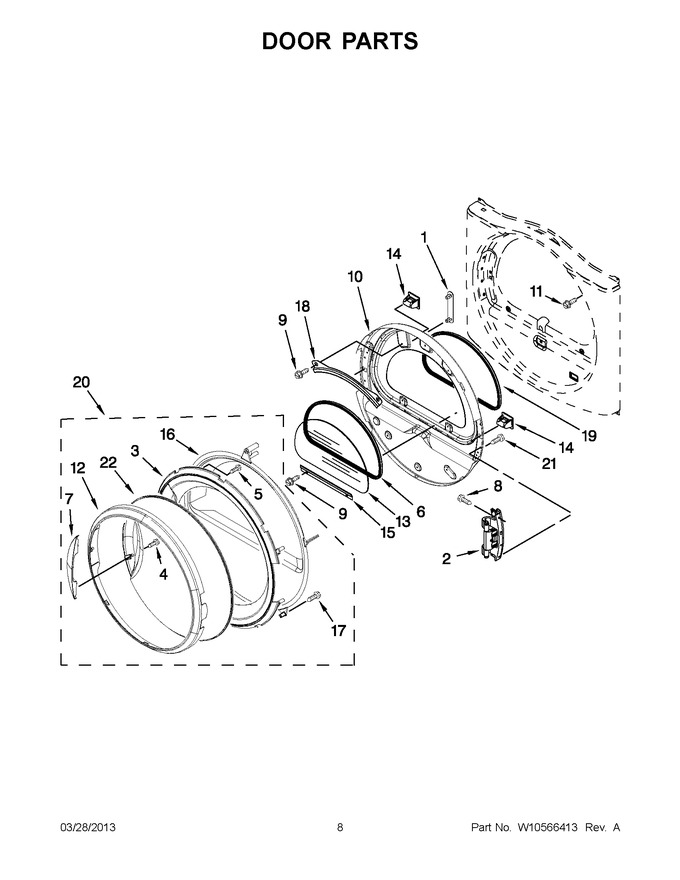

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8565119		Hole Cover, Hinge				$ 98.32
2	WPW10304672		Assembly, Door Hinge   (Replaces: W10304672)			Immediately	$ 232.48
3	8565111		Door, Intermediate Assembly		Appelez-nous	-
4	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
5	3400618		Screw				$ 67.94
6	W11706993		Seal, Window   (Replaces: 8579663)				$ 28.22
7	8576578		Handle, Door (chrome)				$ 50.30
8	WPW10159996		Screw   (Replaces: W10159996)				$ 8.52
9	WP3373329		Screw   (Replaces: 3393258)				$ 8.52
10	W11690171		Door, Inner   (Replaces: W10363674)				$ 204.49
11	WP355515		Screw   (Replaces: 355515)				$ 8.48
12	8576577		Outer Door Ring (chrome)				$ 328.52
13	WPW10286878		Window   (Replaces: W10286878)				$ 274.76
14	279570		Assembly, Door Catch   (Replaces: 690081)			Immediately	$ 8.89
15	W10822054		Retainer, Window   (Replaces: 8519354)			Immediately	$ 18.01
16	WP8580059		Door, Intermediate   (Replaces: 8580059)				$ 107.50
17	WP8534022		Screw   (Replaces: 8534022)				$ 8.37
18	8519356		Retainer, Window (upper)		Appelez-nous	-
19	WPW10163915		Seal, Door   (Replaces: W10163915)			Immediately	$ 87.42
20	W10306556		Outer Door, Assembly		Appelez-nous	-
21	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
22	W10174863		Door Screen		Appelez-nous	-
