01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Motor And Ice Container Parts


10 - Icemaker Parts


11 - Optional Parts (not Included)

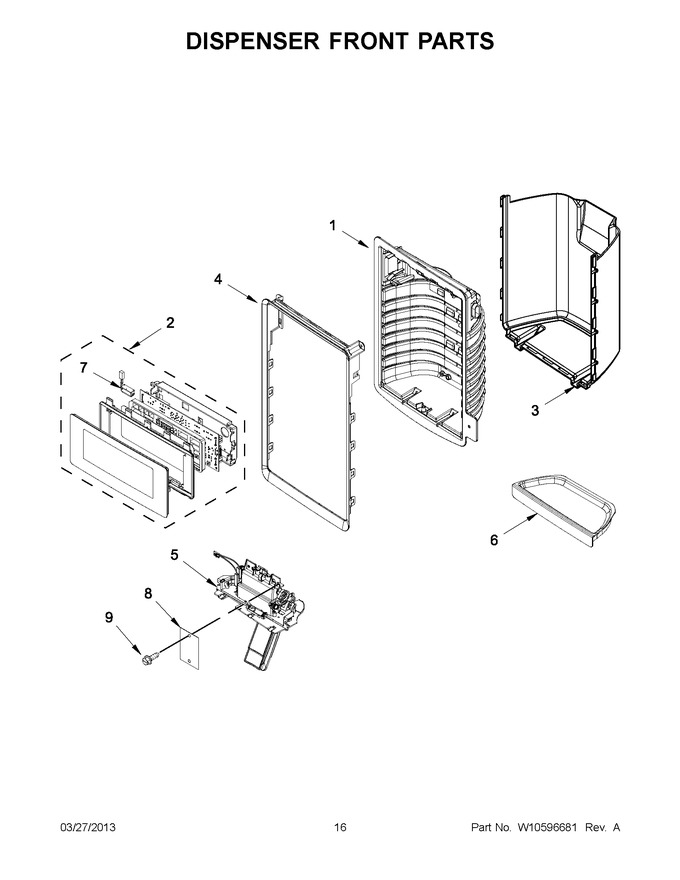

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10864261		Ui Assembly (white)   (Replaces: W10502236)				$ 456.33
3	W10488324		False Wall, Dispenser (grey)		Appelez-nous	-
4	W10424567		Ring, Trim (grey)				$ 96.31
5	WPW10616134		Separator Assembly (grey)   (Replaces: W10403772)				$ 209.79
6	WPW10606639		Tray, Drip (grey)   (Replaces: W10402167)				$ 101.40
7	W11290115		Led Assembly   (Replaces: W10470750)				$ 84.45
8	W10572633		Shield, Separator		Appelez-nous	-
9	WPW10272364		Screw   (Replaces: W10272364)			Immediately	$ 11.36
