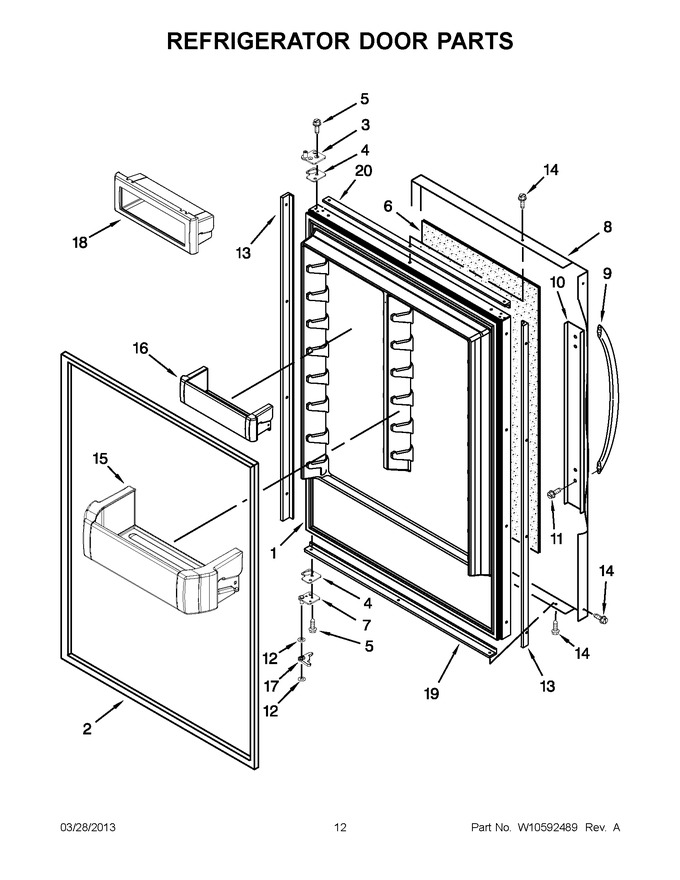

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10192039 | Door, Refrigerator |
|
- | |||||
| 2 | 2302709 | Gasket, Door (Replaces: 2300184) |
|
$ 328.30 | |||||
| 3 | W11673500 | Assembly, Top Hinge (Replaces: W10485980) |
|
Immediately | $ 108.07 | ||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 6 | 2327469 | Filler, Foam |
|
- | |||||
| 7 | 2316807 | Bottom Hinge Assembly (left Hand) |
|
$ 216.30 | |||||
| 7 | 2316805 | Bottom Hinge Assembly (right Hand) |
|
$ 214.92 | |||||
| 8 | W10523737 | Skin, Door (stainless Steel) |
|
- | |||||
| 9 | WP2316868 | Door Handle (stainless) (Replaces: 2316868) |
|
Immediately | $ 281.43 | ||||
| 10 | W10127710 | Plate, Handle Door |
|
Immediately | $ 25.94 | ||||
| 11 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 12 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 13 | 2300026 | Spacer, Door Side Edge |
|
- | |||||
| 14 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 15 | W10323749 | Bin, Gallon |
|
$ 136.84 | |||||
| 16 | W11590561 | Bin, Shallow (Replaces: W10323603) |
|
$ 94.23 | |||||
| 17 | W10188434 | Cover, Bottom Gap |
|
$ 67.95 | |||||
| 18 | W10323044 | Assembly, Utility Bin |
|
$ 132.58 | |||||
| 19 | 2300023 | Spacer, Bottom Door Edge (white) |
|
- | |||||
| 20 | 2300024 | Spacer, Top Door Edge (white) |
|
- |
