Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10557699 Shelf, Snack Pan Appelez-nous -
2 W11164152 Roller   (Replaces: W10278139) In-Stock Immediately $ 15.74

3 W10257334 Slide, Humidity Special Order $ 61.15

4 W10257332 Housing, Humidity Special Order $ 84.82

5 W10557700 Cover, Assembly Appelez-nous -
6 W10557685 Pan, Snack Special Order $ 65.21

7 W10557686 Pan, Crisper Special Order $ 69.76

8 WPW10257246 Axle, Roller   (Replaces: W10257246) Special Order $ 36.54

9 W10557687 Pan, Meat Special Order $ 132.16

10 W10508808 Shelf Assembly Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

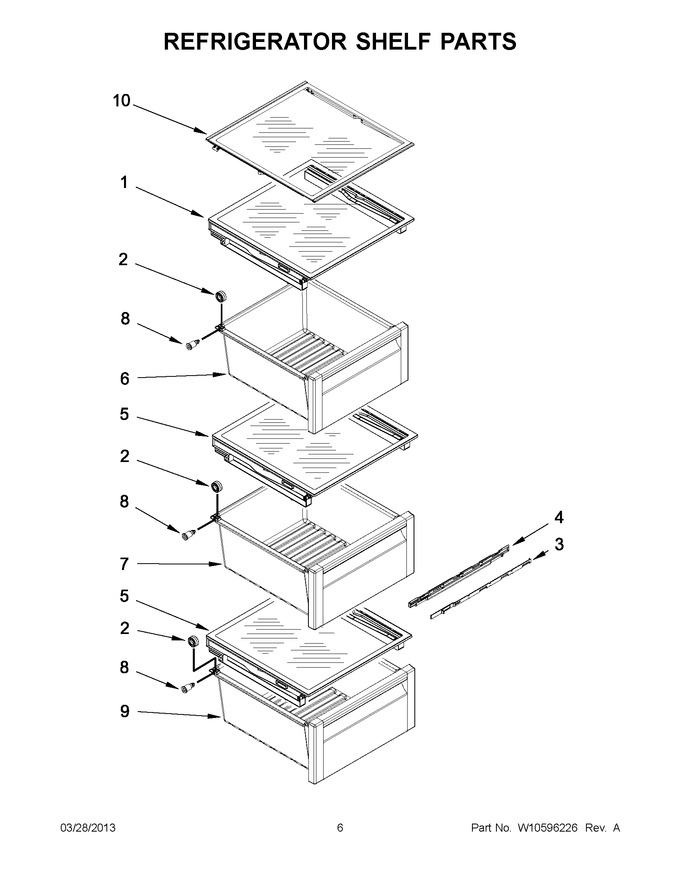

Diagram for WRS950SIAM00
